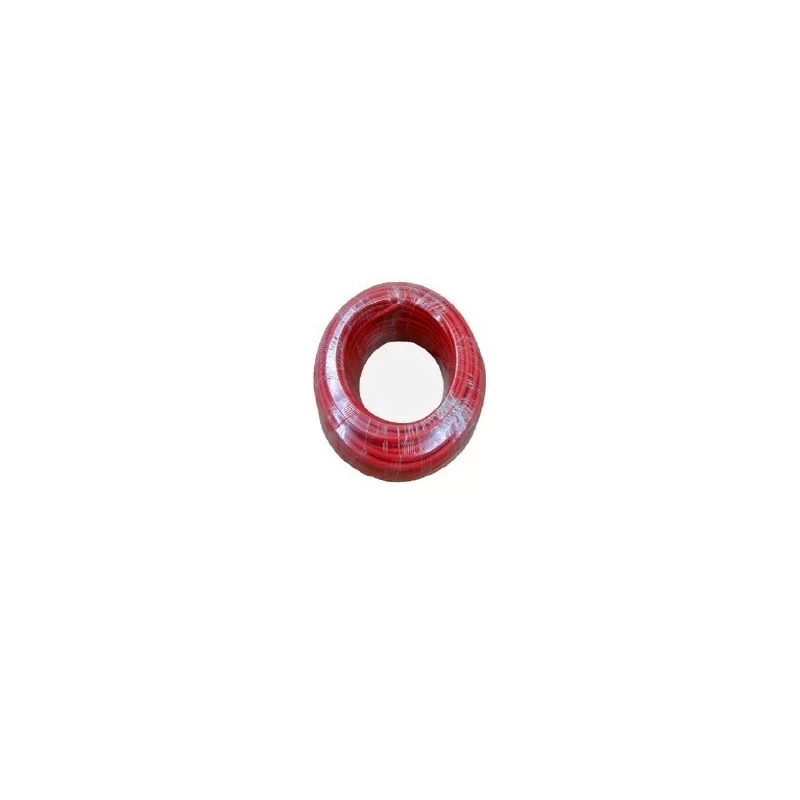

4mm2 single-core DC cable 100m - red

    Product pictures for illustrative purposes only.

    • 4mm2 single-core DC cable 100m - red

    4mm2 single-core DC cable 100m - red

    R2,010.00 including VAT
    Delivery 2 to 4 working days, may be longer to outlying areas.


    4mm2 single-core DC cable 100m - red

    Quantity
    In Stock
    77 Items

    Got a question? Ask here!

    IMPORTANT

    The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.

    Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40oC to +90oC. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable.

    H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION

    • Conductor Flexible tinned copper (Class 5)
    • Insulation Halogen-free cross-linked compound
    • Outersheath Halogen-free cross-linked flame retardant compound

    The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version.

    As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire.

    CABLE-4-100-R
    77 Items

    Specific References

    MPN
    CABLE-4-100-R
