RS1 Universal End and Mid Clamp 30 - 50mm Black ONE FOR ALL

    Product pictures for illustrative purposes only.

    • RS1 Universal End and Mid Clamp 30 - 50mm Black ONE FOR ALL

    RS1 Universal End and Mid Clamp 30 - 50mm Black ONE FOR ALL

    R100.00 including VAT
    Delivery 2 to 4 working days, may be longer to outlying areas.


    Renusol Universal Solar Panel clamp, to be used with VarioSolar product range

    Colour: Black

    Quantity
    In Stock
    233 Items

    Got a question? Ask here!

    IMPORTANT

    The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.

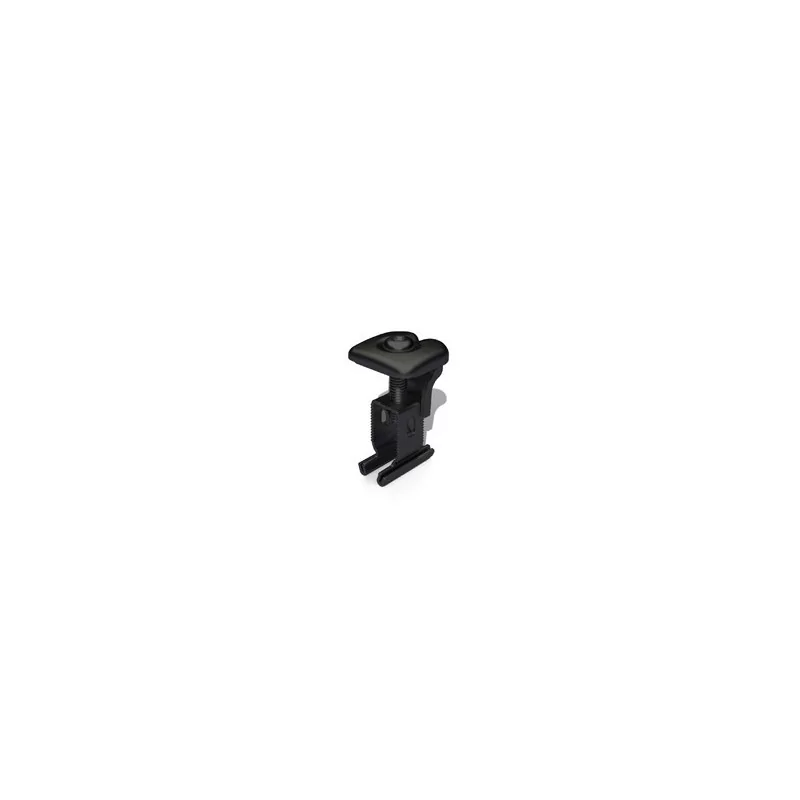

    This innovative masterpiece makes your next PV-project a whole lot easier. The RS1 works as mid- and end clamp. It is heigth adjustable and secures any framed PV panel starting from 30 mm up to 50 mm height. Twisting the RS1‘s head changes the functionality from end- to mid-clamp. Installation and positioning works one handed. At the same time it minimizes needed storage space and saves administrational costs in item management. The RS1 is a real time saver and generates savings over your entire value chain.

    Technical Data:

    Dimensions: 35x36.5x60

    Weight: 0.083kg

    Set: complete pre-assembled set

    Material: Corrosion resistant steel

    Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197

    Module Types: Framed modules only

    Module Thickness: Between 30.0mm and 50.0mm

    Maximum Torque: 12,00 Nm

    Driver: Hexagon socket 5mm

    REN-420080-B
    233 Items

    Specific References

    MPN
    REN-420080-B
    New
