Product pictures for illustrative purposes only.
Order must be placed on this page to qualify for 2% EFT discount.
| Rated Power | 5000VA / 5000W |
| Maximum PV Array Power | 4500W |
| MPPT Range @ Operating Voltage | 120VDC~430VDC |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 80A |
Please note that this inverter is intended for 100% off-grid use only and thus does not have NRS-097-2-1 certification. This certification is a requirement for grid-tied applications in certain South African municipalities. Therefore, connecting these off-grid inverters to the grid may not be permitted in some areas.
Please check with your local electricity supplier if you intend connecting it to the grid.

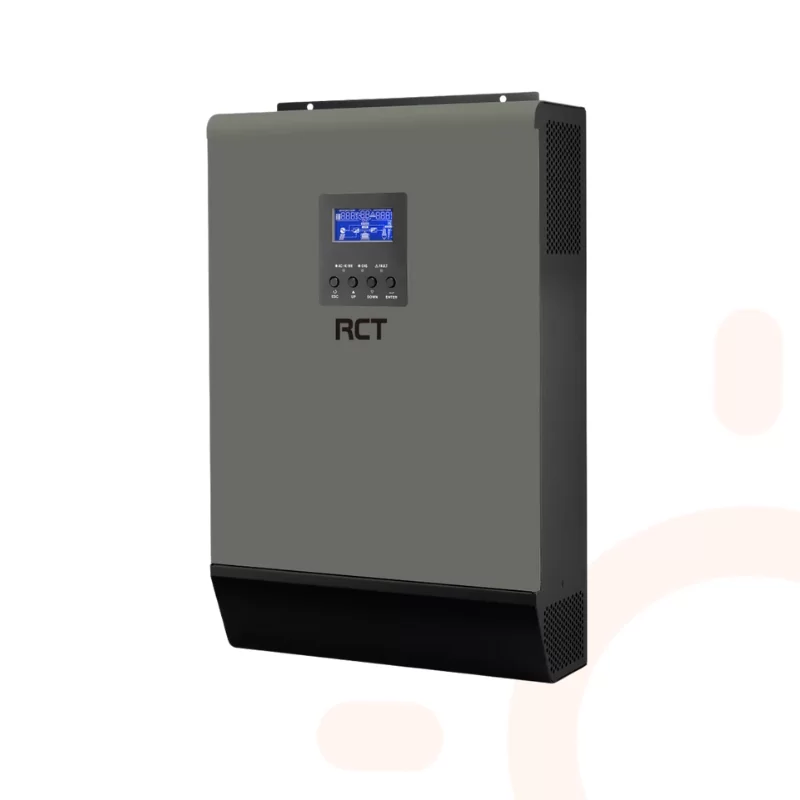

The RCT Axpert 5K MK2 is a versatile 5kVA/5kW inverter-charger that combines a pure sine wave inverter, an 80A MPPT solar charge controller, and a smart battery charger into a single compact unit. With a 48V DC input, it accommodates up to 4500W of solar PV input (450V open circuit) and offers a peak efficiency of 93%.
Key Features:
Pure sine wave output with power factor 1
Built-in 80A MPPT solar charge controller (120–430V MPPT range)
Selectable input voltage range for home appliances and PCs
Configurable charging current and AC/solar input priority via LCD
Supports parallel operation with up to 9 units (parallel card included)
Compatible with mains or generator input
Cold start function and overload/short-circuit protection
Smart battery charger with equalization support for extended battery life
This inverter is ideal for off-grid solar systems, backup power during load shedding, or hybrid setups. It supports both lead-acid and lithium-ion batteries (not included). Compact and lightweight at just 11kg, it's suitable for both residential and commercial installations.
Specifications:
Rated Power: 5000VA / 5000W
Battery Voltage: 48V DC
Maximum PV Array Power: 4500W
Maximum PV Open Circuit Voltage: 450V DC
Maximum Solar Charge Current: 80A
Maximum AC Charge Current: 80A
Dimensions: 120 x 295 x 468 mm
Net Weight: 11 kg
Perfect for South African conditions, the RCT Axpert 5K MK2 offers reliable, scalable power for homes and businesses.
2 -year manufacturers carry in warranty.
Specific References
Be the first to ask a question about this product!
| Rated Power | 5000VA / 5000W |
| Maximum PV Array Power | 4500W |
| MPPT Range @ Operating Voltage | 120VDC~430VDC |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 80A |
Please note that this inverter is intended for 100% off-grid use only and thus does not have NRS-097-2-1 certification. This certification is a requirement for grid-tied applications in certain South African municipalities. Therefore, connecting these off-grid inverters to the grid may not be permitted in some areas.
Please check with your local electricity supplier if you intend connecting it to the grid.
