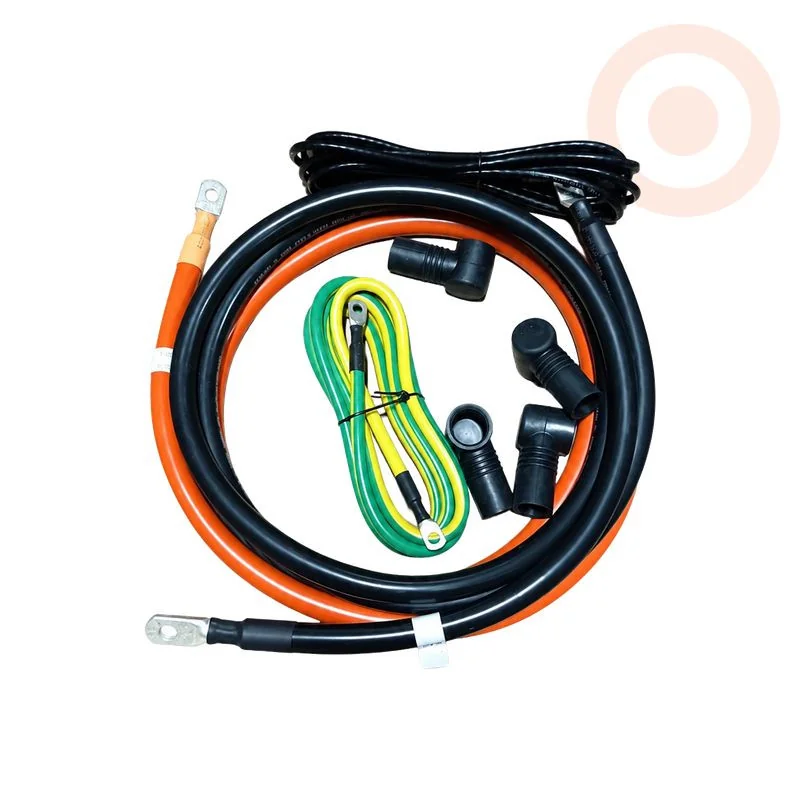

Pylontech Fidus Plus 16kWh External Cable Kit

Product pictures for illustrative purposes only.

  • Pylontech Fidus Plus 16kWh External Cable Kit

Delivery & Returns

  • Delivery: Nationwide courier, 2–4 working days (main centres).
  • Outlying Areas: Delivery may be up to 7 days.
  • Returns: 7-day inspection period from date of delivery.
  • Pricing: All prices include VAT. Delivery calculated at checkout.

Pylontech Fidus Plus 16kWh External Cable Kit

R1,430.00 including VAT
Sam

Get an automatic 2% discount when you order directly on this page and checkout by EFT!

Payment methods offered
EFT Mastercard Visa Mobicred Apple Pay Samsung Pay RCS Zapper

The Pylontech Fidus Plus 16kWh External Cable Kit is a professional-grade connectivity solution designed to ensure high-capacity energy transfer and secure communication between your Fidus Plus battery system and power inverter.

  • Heavy-duty power cables rated for 200A continuous current and 56V DC voltage.
  • Includes a specialized BMS communication cable for synchronized system monitoring and safety.
  • Complete with an earthing cable and protective terminal boots for enhanced electrical protection.
  • Specifically engineered for seamless integration with the Pylontech Fidus Plus 16kWh (FB-L-16) series.
21 Items
Quantity

IMPORTANT

The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.

Optimized for high-performance residential and commercial energy storage, the Pylontech Fidus Plus 16kWh External Cable Kit provides all the necessary components for a safe and robust installation. This kit is specifically designed to handle the high current demands of the 16.08kWh Fidus Plus battery, supporting a continuous discharge of up to 200A and peak surges up to 300A.

Constructed with high-conductivity copper and durable insulation, the power cables minimize voltage drop and heat generation. The included communication cable enables the Battery Management System (BMS) to interface directly with compatible hybrid inverters via CAN or RS485 protocols, ensuring optimal charging cycles and battery longevity. For added safety, the kit includes terminal covers to prevent accidental contact and an earthing cable to ensure proper grounding of the battery enclosure.

Technical Specifications
ManufacturerPylontech
CompatibilityFidus Plus 16kWh (FB-L-16 / FB-L-16-Pro)
Maximum Continuous Current200A
Peak Current Support300A (15 seconds)
Maximum Rated Voltage56V DC
Power Cables2 x 2.0m (Positive and Negative)
Communication Cable1 x 2.1m (RJ45 / CAN-RS485)
Earth Cable1 x 2.1m (Lug to Lug)
Protection FeaturesTerminal protection boots included
ApplicationExternal connection for Lithium-Ion storage systems
PYL-FIDUS-PLUS-CAB-KI

Logistical Details

Weight
2.80 kg
Dimensions (W x H x D)
35 cm x 8 cm x 35 cm
