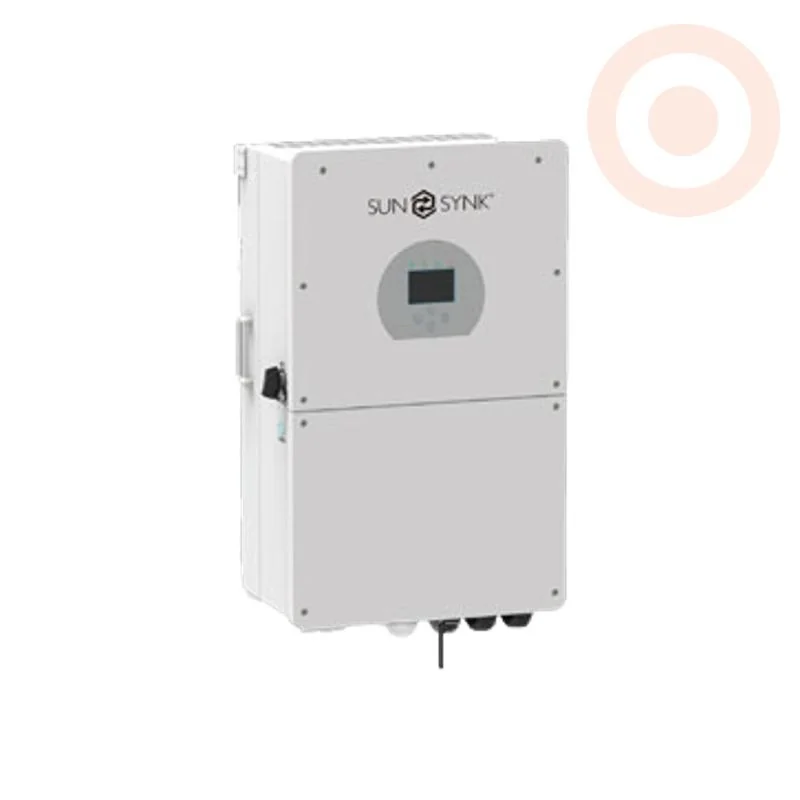

The Sunsynk Plus 16kW is a high-performance single-phase hybrid inverter designed to provide massive power and energy independence for large residential and light commercial solar installations.
The Sunsynk Plus 16kW, 48Vdc Single Phase Classic Hybrid Inverter represents the pinnacle of low-voltage energy management. This versatile power tool allows users to achieve energy parity by intelligently managing flow from multiple sources, including solar panels, the municipal grid, and backup generators. Designed for high-demand applications, it features a robust 16kW output and a massive battery charge current, making it ideal for systems requiring significant backup and peak-shaving capabilities.
Equipped with a colorful touch LCD and built-in Wi-Fi, the inverter provides real-time visibility and remote monitoring through the Sunsynk platform. Its three MPPT trackers support diverse solar array designs, ensuring maximum energy yield even on complex roofs. The unit is fully programmable with multiple operation modes including on-grid, off-grid, and UPS, providing a seamless transition during power outages.
| Technical Specifications | |
|---|---|
| Model Number | SYNK-16K-SG01LP1PLUS |
| Rated AC Output Power | 16,000 W |
| Max. DC Input Power | 20,800 W |
| Max. PV Input Voltage | 500 V |
| MPPT Voltage Range | 150 V – 425 V |
| Number of MPPT Trackers | 3 |
| Battery Type | Lead-acid or Lithium-ion |
| Nominal Battery Voltage | 48 Vdc |
| Max. Charge/Discharge Current | 290 A |
| Max. Efficiency | 97.60% |
| Ingress Protection | IP65 |
| Communication Ports | RS485, CAN, RS232 |
| Operating Temperature | -40°C to +60°C |
