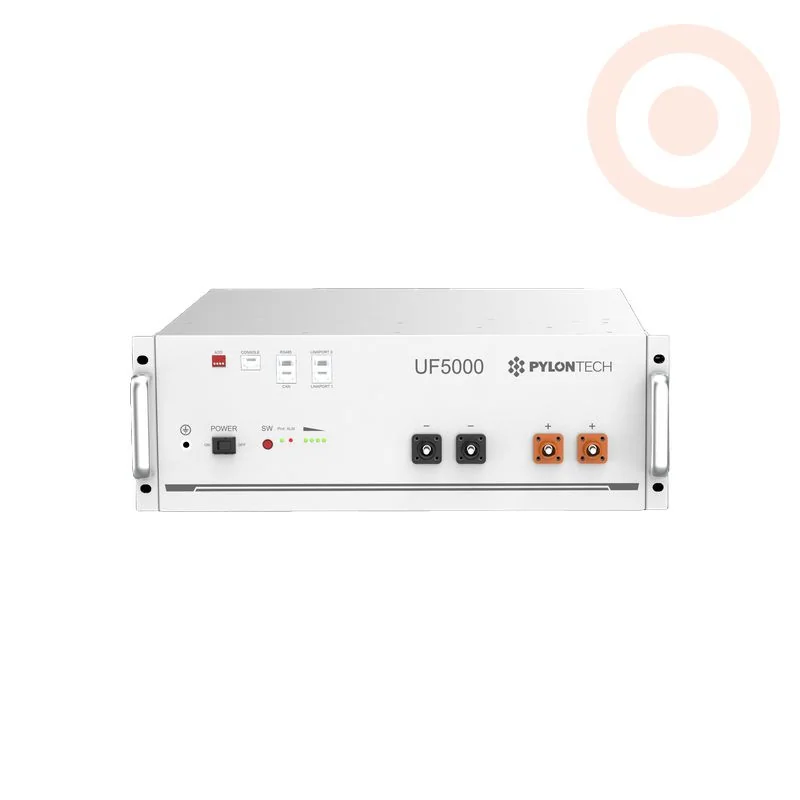

The Pylontech UF5000 is a high-performance 5.12kWh lithium-ion phosphate (LFP) battery module designed to provide reliable and efficient energy storage for residential and small commercial solar systems.
The Pylontech UF5000 51.2V Li-ion battery represents the next generation of energy storage technology. Specifically engineered for both grid-tied and off-grid solar systems, this module provides a robust 5.12kWh capacity in a compact, sleek white enclosure. Its advanced LiFePO4 chemistry ensures maximum safety, thermal stability, and an industry-leading lifespan of up to 15 years.
Equipped with a high-rated 100A continuous charge and discharge capability, the UF5000 is capable of handling significant power demands, making it ideal for backup during load shedding or optimizing self-consumption. The modular nature of the system allows for seamless expansion, supporting up to 20 units in a single string without requiring additional hubs. It features dual communication ports (CAN and RS485) for broad compatibility with major hybrid inverter brands.
| Nominal Energy | 5.12 kWh |
| Usable Capacity | 4.864 kWh |
| Nominal Voltage | 51.2 V |
| Depth of Discharge (DoD) | 95% |
| Charge/Discharge Current (Normal) | 100 A |
| Peak Discharge Current | 121-200A @ 15sec |
| Communication Ports | RS485, CAN |
| Cycle Life | >6,000 cycles @ 25°C |
| Design Life | 15+ Years |
| Operating Temperature | -10°C to 55°C |
| Protection Rating | IP20 |
| Certifications | IEC62619, UN38.3, RoHS, REACH |
