Product pictures for illustrative purposes only.
Get an automatic 2% discount when you order directly on this page and checkout by EFT!

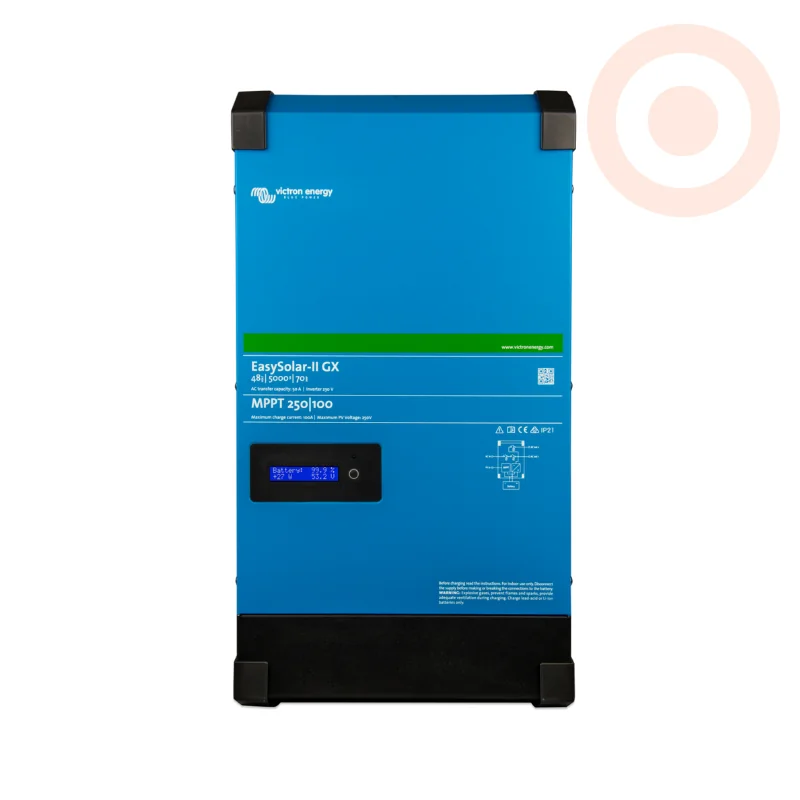

The Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX is an all-in-one solar power solution that integrates a MultiPlus-II inverter/charger, a SmartSolar MPPT solar charge controller, and a GX control device into a single pre-wired enclosure for simplified installation and maximum efficiency.
The EasySolar-II GX provides a comprehensive energy management system by combining the power of a 5000VA inverter/charger with the efficiency of a high-voltage SmartSolar MPPT. The integrated GX device acts as the brain of the system, offering a 2 x 16-character display and full connectivity via Wi-Fi, Ethernet, and Bluetooth. This all-in-one approach significantly reduces installation time and cabling complexity, making it an ideal choice for residential or small commercial solar installations.
| General Specifications | |
|---|---|
| Inverter Power (Continuous) | 5000 VA / 4000 W |
| System Voltage | 48 VDC |
| AC Input Voltage Range | 187-265 VAC |
| Maximum AC Input Current | 50 A |
| Transfer Switch | 50 A |
| Solar Charge Controller | |
| Model | SmartSolar MPPT 250/100-Tr |
| Maximum Output Current | 100 A |
| Maximum PV Open Circuit Voltage | 250 V |
| Maximum PV Power | 5800 W |
| Integrated GX Device | |
| Interfaces | BMS-Can, USB, Ethernet, VE.Direct |
| Display | 2 x 16-character LCD |
| Physical & Environment | |
| Weight | 38.6 kg |
| Dimensions (H x W x D) | 604 x 323 x 253 mm |
| Protection Category | IP21 |
| Operating Temp Range | -40 to +65°C |
Logistical Details
Be the first to ask a question about this product!
The Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX is an all-in-one solar power solution that integrates a MultiPlus-II inverter/charger, a SmartSolar MPPT solar charge controller, and a GX control device into a single pre-wired enclosure for simplified installation and maximum efficiency.
