Product pictures for illustrative purposes only.
Get an automatic 2% discount when you order directly on this page and checkout by EFT!

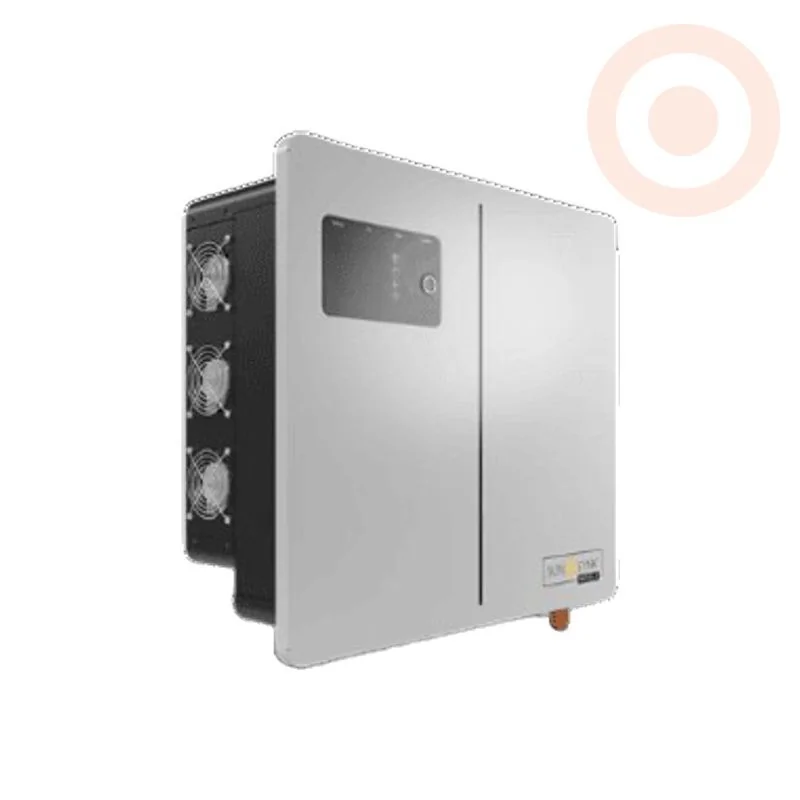

The Sunsynk Lynks Pro 2nd Generation 12kW 3-Phase Hybrid Inverter represents the pinnacle of modern energy technology, designed to handle the demanding power requirements of large residential homes, farms, and light commercial properties. This multifunctional unit intelligently manages energy flow between solar panels, battery storage, and the utility grid in real-time, helping users maximize self-consumption and protect against power outages.
Equipped with a user-friendly LCD touch screen and a revamped interface, the Lynks Pro series makes system configuration and monitoring simpler than ever. Its robust IP65 ingress protection ensures the unit can be safely installed in various environments, providing long-term durability against dust and water exposure.
| Technical Specifications | |
|---|---|
| Model | SUN-LYNKS-PRO-12.0-3PH |
| Rated AC Output Power | 12,000W |
| Max. DC Input Power (Solar) | 18,000W |
| Battery Type | Lead-acid or Li-Ion (40V – 60V) |
| Max. Charging/Discharging Current | 240A |
| Number of MPPT Trackers | 2 |
| Max. PV Input Voltage | 550V (150V - 800V) |
| MPPT Voltage Range | 200V - 650V |
| Start-up Voltage | 160V |
| Efficiency | 97.6% (Max) / 97.0% (Euro) |
| Transfer Time | < 10ms (UPS Mode) |
| IP Rating | IP65 (Indoor/Outdoor) |
| Cooling | Smart Cooling (Fans) |
| Communication | RS485, CAN, Wi-Fi |
| Warranty | 5-Year Standard Manufacturer Warranty |
The 2nd Generation Lynks Pro features high surge capacity to handle heavy starting loads and supports 100% unbalanced output, meaning each phase can output up to 50% of the rated power. With its ability to parallel up to 16 units, this inverter provides a scalable solution for growing energy needs, while its zero-export functionality ensures compliance with local grid regulations.
