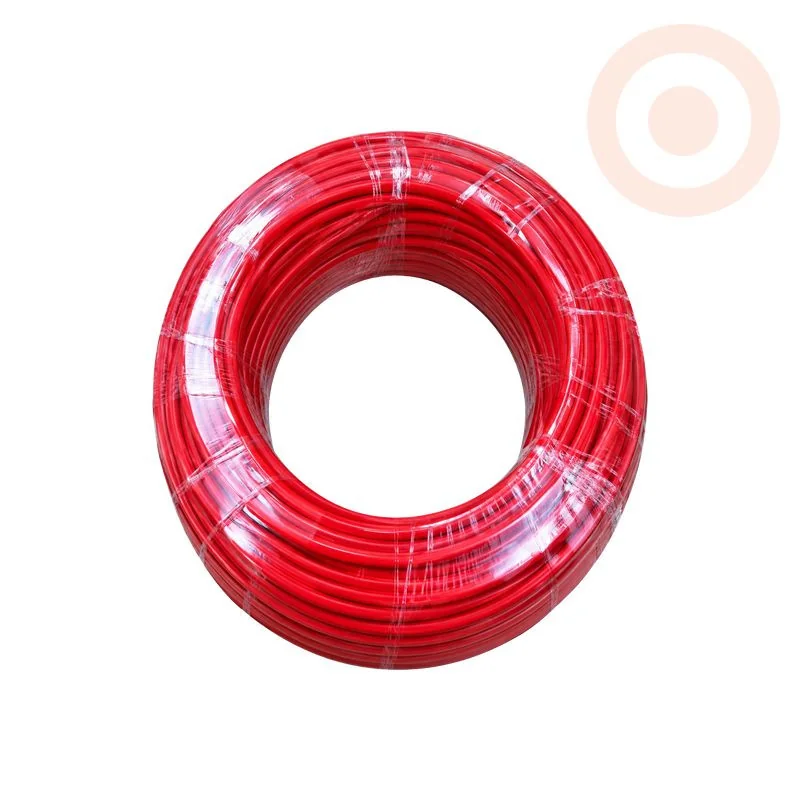

6mm2 single-core PV DC cable 1m - Red
R23.00 including VAT
Get an automatic 2% discount when you order directly on this page and checkout by EFT!
Payment methods offered
This premium 6mm² single-core PV DC cable in red is engineered for the high-performance interconnection of photovoltaic systems and solar panel arrays.
Compliant with EN 50618 (H1Z2Z2-K) standards for maximum safety and reliability.
UV, ozone, and weather-resistant insulation designed for harsh outdoor environments.
Tinned copper conductor ensures superior conductivity and long-term corrosion resistance.
Low smoke zero halogen (LSZH) construction for enhanced fire safety.
IMPORTANT
The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.
This high-quality 6mm² single-core PV DC cable is specifically designed for the demanding requirements of modern photovoltaic systems. Manufactured to the H1Z2Z2-K European standard, it provides a robust and durable solution for connecting solar panels to inverters and DC combiner boxes. The red outer sheath allows for easy polarity identification during installation. Featuring a fine-wire tinned copper conductor, this cable offers excellent flexibility and high current-carrying capacity while minimizing power loss. Its cross-linked polyolefin (XLPO) insulation and jacket provide exceptional resistance against UV radiation, extreme temperatures, and chemical exposure, ensuring an anticipated service life of at least 25 years.
Technical Specifications
Product Type
Single-core PV DC Solar Cable
Cross-Sectional Area
6mm²
Standard
EN 50618 (H1Z2Z2-K)
Rated Voltage
1.5kV DC (Max 1.8kV) / 1.0kV AC
Conductor Material
Tinned Copper (Class 5)
Insulation/Sheath Material
Halogen-Free Cross-linked Polyolefin (XLPO)
Temperature Range
-40°C to +90°C (Max Conductor 120°C)
Outer Diameter
Approx. 6.3mm
Current Capacity
~70A (at 60°C ambient)
Flame Retardancy
EN 60332-1-2
CABLE-6-1-R
Logistical Details
MPN
H1Z2Z2-K-6-RED
Weight
0.08 kg
Dimensions (W x H x D)
1 cm x 1 cm x 100 cm
