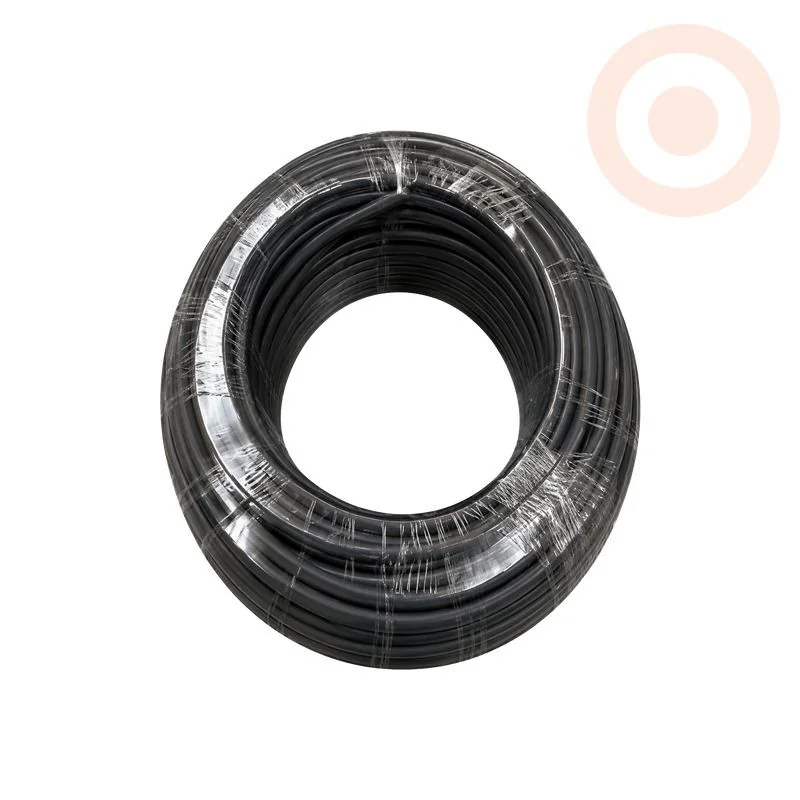

This premium 6mm² single-core PV DC cable is specifically designed for the high-performance interconnection of photovoltaic modules in residential and commercial solar systems.
Designed for the demanding environments of modern solar installations, the 6mm² single-core PV DC cable (H1Z2Z2-K) provides a robust and efficient solution for connecting solar panels to inverters or string boxes. Its cross-linked halogen-free (LSZH) insulation and sheath ensure that the cable can withstand extreme temperatures and environmental stress while maintaining low smoke emission in the event of a fire.
The flexible, tinned copper conductor offers excellent conductivity and resistance to corrosion, which is critical for long-term outdoor exposure. With a rated voltage of 1500V DC and a maximum permissible voltage of 1800V DC, this cable is fully compatible with utility-scale and high-voltage string configurations.
| Technical Specifications | Value |
|---|---|
| Nominal Cross-Section | 6.0 mm² |
| Cable Type | H1Z2Z2-K (EN 50618) |
| Conductor Material | Flexible tinned annealed copper (Class 5) |
| Rated Voltage | 1.0/1.0 kV AC, 1.5/1.5 kV DC (max. 1.8 kV DC) |
| Temperature Range (Fixed) | -40°C to +90°C |
| Max. Conductor Temperature | +120°C (for 20,000 hours) |
| Outer Diameter (Approx.) | 6.2 mm |
| Insulation / Sheath Material | Halogen-free cross-linked compound (XLPO) |
| Environmental Resistance | UV, Ozone, and Weather resistant |
| Anticipated Service Life | 25 years |
