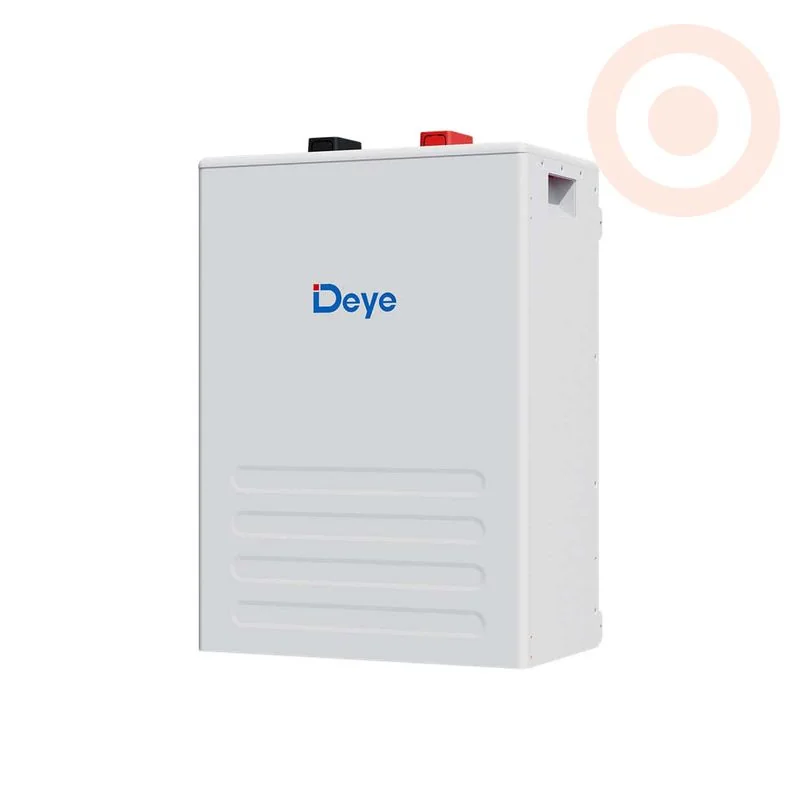

Deye Battery Lithium Ion Low Voltage 11.8Kwh

Product pictures for illustrative purposes only.

  • Deye Battery Lithium Ion Low Voltage 11.8Kwh

Delivery & Returns

  • Delivery: Nationwide courier, 2–4 working days (main centres).
  • Outlying Areas: Delivery may be up to 7 days.
  • Returns: 7-day inspection period from date of delivery.
  • Pricing: All prices include VAT. Delivery calculated at checkout.

Deye Battery Lithium Ion Low Voltage 11.8Kwh

R30,670.00 including VAT
Sam

Get an automatic 2% discount when you order directly on this page and checkout by EFT!

Payment methods offered
EFT Mastercard Visa Mobicred Apple Pay Samsung Pay RCS Zapper
The Deye 11.8kWh Low Voltage Lithium-Ion Battery is a high-performance energy storage solution designed for residential and light commercial solar systems, offering exceptional reliability and efficiency.
  • 11.8kWh usable capacity with advanced LiFePO4 chemistry for safety and longevity.
  • Intelligent Battery Management System (BMS) with active fuse and cell balancing.
  • High charge/discharge capability (1C rate) and ≥6000 cycle lifespan.
  • Scalable modular design supporting up to 32 units in parallel.
8 Items
Quantity

IMPORTANT

The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.

The Deye SE-F12 (11.8kWh) represents the next generation of residential energy storage. Built with Cobalt-free Lithium Iron Phosphate (LiFePO4) technology, this low-voltage battery provides a safe, high-density solution for maximizing solar self-consumption and providing robust backup power. Its integrated design reduces line loss and simplifies installation, making it an ideal choice for modern smart homes.

Equipped with a sophisticated intelligent BMS, the unit continuously monitors cell health, voltage, and temperature, ensuring maximum protection against overcharge, over-discharge, and thermal runaway. The battery's modular architecture allows for easy expansion as energy needs grow, supporting massive parallel scalability for larger systems.

Technical Specifications
ModelSE-F12 / SE-F12 C
Battery ChemistryLiFePO4 (Lithium Iron Phosphate)
Nominal Energy11.8 kWh
Nominal Capacity230 Ah
Nominal Voltage51.2 V
Operating Voltage Range44.8 V – 57.6 V
Max. Continuous Charge/Discharge Current115 A / 230 A
Peak Discharge Current (10s)280 A
Depth of Discharge (DoD)90%
Cycle Life≥ 6,000 Cycles @ 25°C
Ingress ProtectionIP65 (NEMA 3R)
Communication PortsCAN 2.0, RS485, Bluetooth
Operating TemperatureCharge: 0~55°C / Discharge: -20~55°C
SE-F12C

Logistical Details

EAN13
3800156697874
MPN
SE-F12
Weight
84.00 kg
Dimensions (W x H x D)
40 cm x 56 cm x 23 cm
