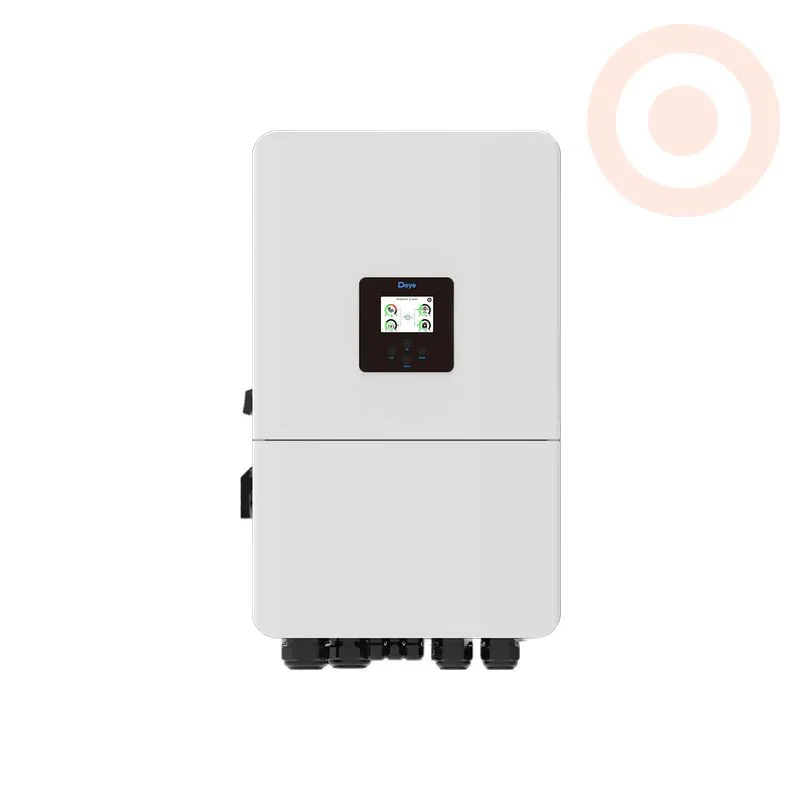

Deye 20Kw Three Phase Hybrid Inverter 48v (Low Voltage)

Product pictures for illustrative purposes only.

  • Deye 20Kw Three Phase Hybrid Inverter 48v (Low Voltage)

Delivery & Returns

  • Delivery: Nationwide courier, 2–4 working days (main centres).
  • Outlying Areas: Delivery may be up to 7 days.
  • Returns: 7-day inspection period from date of delivery.
  • Pricing: All prices include VAT. Delivery calculated at checkout.

Deye 20Kw Three Phase Hybrid Inverter 48v (Low Voltage)

R51,690.00 including VAT
Sam

Get an automatic 2% discount when you order directly on this page and checkout by EFT!

Payment methods offered
EFT Mastercard Visa Mobicred Apple Pay Samsung Pay RCS Zapper

The Deye 20kW Three-Phase Hybrid Inverter (Low Voltage) is an advanced, high-capacity power management solution specifically engineered to integrate high-demand three-phase solar systems with cost-effective 48V battery storage.

  • Supports standard 48V low-voltage battery banks with safe transformer isolation.
  • Delivers a massive 350A maximum charging and discharging current for rapid energy transfer.
  • Features 100% unbalanced output capability, allowing up to 50% rated power on any single phase.
  • Scalable architecture allows for parallel connection of up to 10 units for large commercial deployments.
1 Item
Quantity

IMPORTANT

The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.

Advanced Energy Management for Commercial and Large Residential Systems

The Deye SUN-20K-SG05LP3-EU-SM2 represents a breakthrough in hybrid inverter technology, offering 20kW of three-phase power while remaining compatible with common 48V low-voltage battery systems. This unique combination allows installers to utilize widely available and competitively priced residential-scale batteries for high-power commercial applications, significantly reducing overall system costs.

Equipped with dual MPPT trackers and supporting up to 32,000W of DC solar input, this inverter is designed for maximum efficiency (97.6%) and versatility. It features ultra-fast UPS-grade switching (less than 10ms), ensuring that sensitive equipment remains powered during grid outages. Its robust IP65-rated enclosure and intelligent air cooling system make it suitable for a wide range of environmental conditions.

Technical Specifications
ModelSUN-20K-SG05LP3-EU-SM2
Rated AC Output Power20,000 W
Max. AC Output Power22,000 W
Battery TypeLithium-ion / Lead-acid (40V - 60V)
Max. Charge/Discharge Current350 A
Max. DC Input Power32,000 W
PV Input Voltage Range160V - 800V
MPPT Voltage Range160V - 650V
Number of MPPT Trackers2
Strings per MPPT2+2
Max. Efficiency97.60%
Ingress ProtectionIP65
Parallel CapabilityUp to 10 Units
CommunicationRS485, CAN, Wi-Fi
Operating Temperature-40°C to 60°C
SUN-20K-SG05LP3 -EU-SM2

Logistical Details

EAN13
3800156697577
MPN
SUN-20K-SG05LP3-EU-SM2
Weight
50.60 kg
Dimensions (W x H x D)
46 cm x 75 cm x 27 cm
