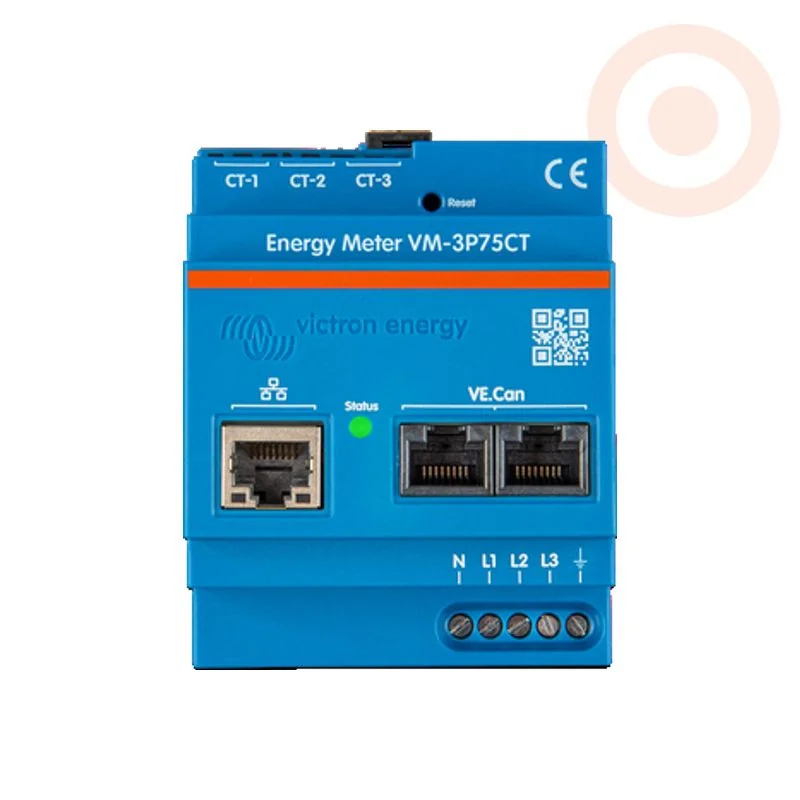

The Victron Energy Meter VM-3P75CT is a professional energy monitoring solution designed for high-speed, precise measurement in single-phase, split-phase, and three-phase systems.
The Victron Energy Meter VM-3P75CT (MPN: REL200300100) is a versatile, high-accuracy meter engineered for integration into Victron Energy Storage Systems (ESS). It provides comprehensive monitoring of electrical parameters, including line-to-neutral voltage, line-to-line voltage, power factor, and phase sequence. By calculating RMS power values for each phase and broadcasting them at a high rate over VE.Can or Ethernet, it ensures superior accuracy for grid-import and feed-in management.
Designed for easy installation, the VM-3P75CT utilizes clamp-type split-core current transformers that allow for setup without altering the existing installation's wiring. It works as a plug-and-play grid meter for most systems, requiring configuration only for changing roles or manual IP settings. Data is easily visualized through the VictronConnect app, GX devices such as the Cerbo GX, and the VRM Portal for remote monitoring from anywhere in the world.
| Manufacturer Part Number | REL200300100 |
| Input Voltage Range (L-N) | 85 to 265 VAC |
| Input Voltage Range (L-L) | 150 to 460 VAC |
| Rated Current | 75A (capable of measuring up to 80A per phase) |
| Current Connection | Via included split-core current transformers (640mm wire) |
| Communication Ports | 2x VE.Can (RJ45), 1x Ethernet (Modbus UDP) |
| Refresh Rate | 100 ms |
| Power Consumption | 1.45 W / 3.1 VA |
| Enclosure Material | Polycarbonate, Blue (RAL 5012) |
| Protection Category | IP20 |
| Operating Temperature | -10°C to +55°C |
| Dimensions (H x W x D) | 90 x 71 x 59 mm |
| Weight | 370g (including packaging) |
