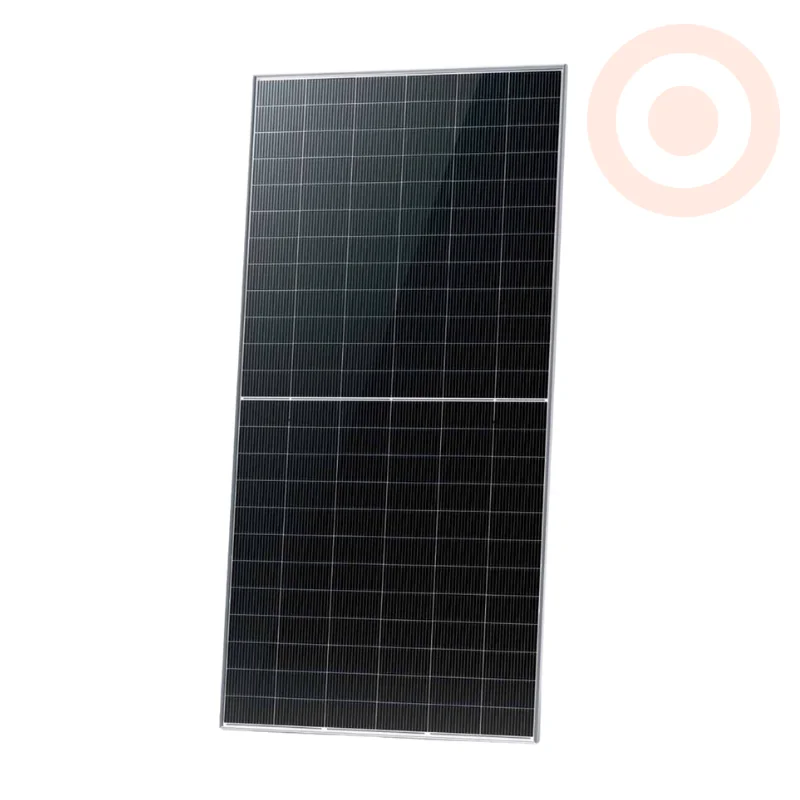

The JA Solar 610W N-Type TOPCon bifacial module is a high-performance double-glass solar panel engineered to maximize energy harvest and ensure long-term durability for large-scale solar projects.
The JA Solar 610W N-Type TOPCon module represents the cutting edge of photovoltaic technology. By utilizing N-type cells, this panel virtually eliminates Light-Induced Degradation (LID) and offers a better temperature coefficient, ensuring stable and high-power output even in challenging environments. Its bifacial capability allows it to capture sunlight from both the front and rear sides, making it exceptionally effective in ground-mounted or high-reflectivity installations.
Constructed with dual 2.0mm semi-tempered glass, this module provides enhanced structural integrity and superior resistance to moisture and salt spray. The integrated traceability system allows for precise tracking of each module's manufacturing history, providing peace of mind for utility-scale investments.
| Rated Power (Pmax) | 610 W |
| Module Efficiency | 23.1% |
| Cell Type | N-type Monocrystalline (144 Half-cells) |
| Open Circuit Voltage (Voc) | 52.80 V |
| Maximum Power Voltage (Vmp) | 44.11 V |
| Short Circuit Current (Isc) | 14.57 A |
| Maximum Power Current (Imp) | 13.83 A |
| Dimensions | 2333 x 1134 x 30 mm |
| Weight | 32.5 kg |
| Front/Back Glass | 2.0mm Semi-tempered |
| Frame | Anodized Aluminum Alloy (Silver) |
| Junction Box | IP68, 3 Diodes |
| Connector Type | Stäubli MC4-EVO2A |
| Product Warranty | 12 Years |
| Performance Warranty | 30 Years Linear Power Warranty |
