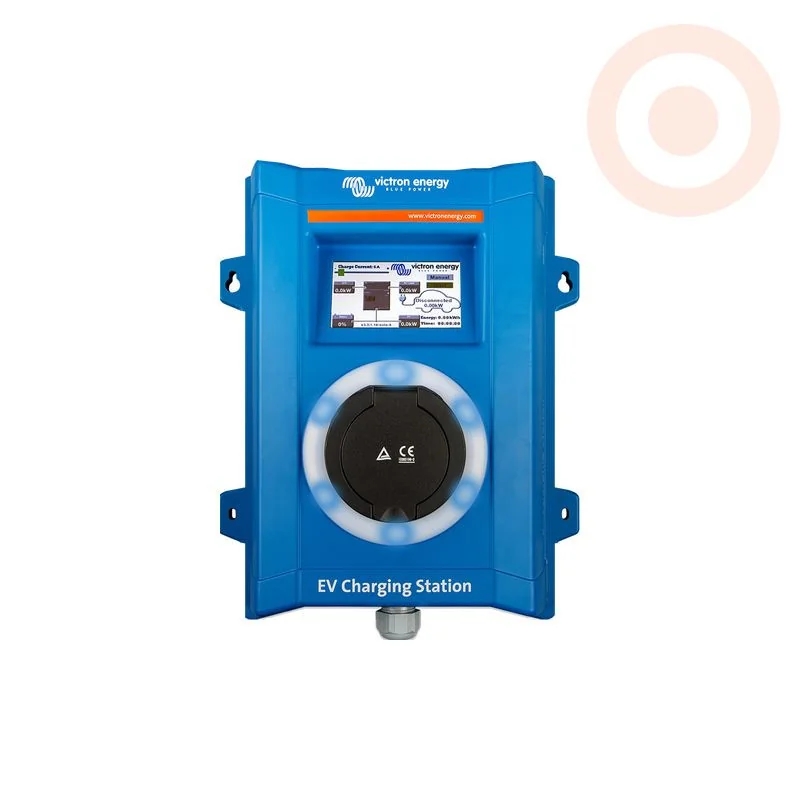

The Victron EV Charging Station-22kW is a high-performance, smart charging solution designed to integrate seamlessly into your Victron energy system for optimized and efficient electric vehicle charging.
The Victron EV Charging Station-22kW is a premium charging solution built for both residential and commercial applications. Specifically designed to work within the Victron Energy ecosystem, it allows users to maximize their solar investment by using excess PV power to charge their electric vehicles. Whether you are monitoring the system locally via the crisp LCD touch screen or remotely through the VRM Portal, this station provides complete control and transparency over your energy usage.
This charging station features three distinct modes of operation to suit any requirement. Manual Mode allows for direct current configuration between 6A and 32A. Automatic Mode detects surplus power in your system and directs it to the vehicle, ensuring no solar energy goes to waste. Scheduled Mode enables you to take advantage of off-peak electricity rates by programming specific charging windows.
Equipped with built-in WiFi and Bluetooth, the station is easy to set up using the VictronConnect app or its integrated web interface. For users with a GX device (such as the Cerbo GX), the charger integrates directly into the system dashboard, allowing for coordinated energy management across your entire installation.
| Technical Specifications | |
|---|---|
| Nominal Power | 22 kW (Three-phase) / 7.3 kW (Single-phase) |
| Input Voltage Range | 170 – 265 VAC (50 Hz) |
| Rated Charge Current | 32 A per phase |
| Current Output Range | 6 – 32 A (Configurable) |
| Connector Type | IEC 62196 Type 2 (Socket) |
| Display | 4.3-inch LCD Touch Screen |
| Communication | WiFi (802.11 b/g/n), Bluetooth, Modbus TCP |
| Protection Category | IP44 |
| Operating Temperature | -25 °C to +50 °C |
| Dimensions (H x W x D) | 377 x 307 x 148 mm |
| Weight | 3.0 kg |
| Enclosure Color | Blue (RAL 5012) |
