Product pictures for illustrative purposes only.
Get an automatic 2% discount when you order directly on this page and checkout by EFT!

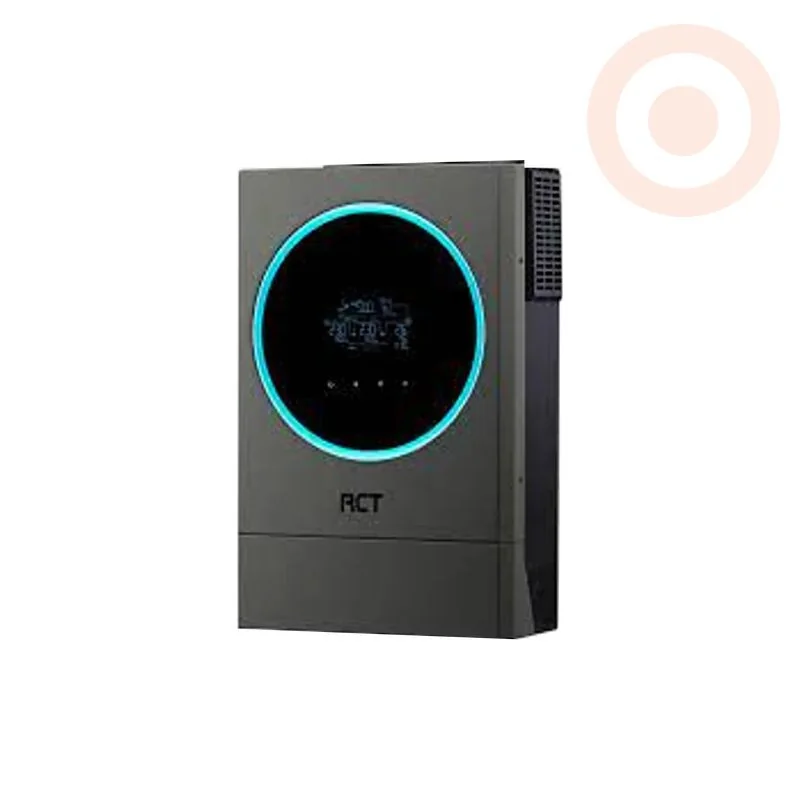

The RCT Axpert 6K MK4 Twin is a high-performance 6kW off-grid inverter designed to provide reliable backup and solar power with advanced load management capabilities for residential and small commercial systems.
The RCT Axpert 6K MK4 Twin (MPN: RCT-AXMK4TW-6K48V) represents the latest generation of off-grid inverter technology, combining a powerful 6000W pure sine wave inverter, a high-capacity solar charger, and a smart battery management system. This model is specifically engineered for users requiring robust energy independence, featuring a dual AC output design that allows for intelligent prioritization of loads based on battery levels or time of day.
Equipped with a large 4.3-inch color LCD and a customizable RGB LED ring, the inverter provides intuitive real-time feedback on system status. Its high-voltage MPPT tracker supports up to 6000W of solar panels with an open-circuit voltage of up to 500V DC, ensuring compatibility with a wide range of modern high-power PV modules. Additionally, the unit supports parallel operation of up to 9 units, making it scalable for larger energy requirements.
| Technical Specifications | |
|---|---|
| Rated Power | 6000VA / 6000W |
| Nominal Input Voltage | 230V AC |
| Selectable Voltage Range | 170-280V AC (PC); 90-280V AC (Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto Sensing) |
| Output Voltage Regulation | 230V AC ± 5% |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (PC); 20ms (Appliances) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 48V DC |
| Floating Charge Voltage | 54V DC |
| Overcharge Protection | 66V DC |
| Maximum PV Array Power | 6000W |
| MPPT Operating Voltage Range | 120V DC ~ 430V DC |
| Maximum PV Array Open Circuit Voltage | 500V DC |
| Max Solar / AC Charge Current | 120A / 120A |
| Dimensions (D x W x H) | 140 x 295 x 468 mm |
| Net Weight | 12.0 kg |
| Communication Interface | USB, RS232, RS485, Wi-Fi, Dry-contact |
Logistical Details
Be the first to ask a question about this product!
The RCT Axpert 6K MK4 Twin is a high-performance 6kW off-grid inverter designed to provide reliable backup and solar power with advanced load management capabilities for residential and small commercial systems.
