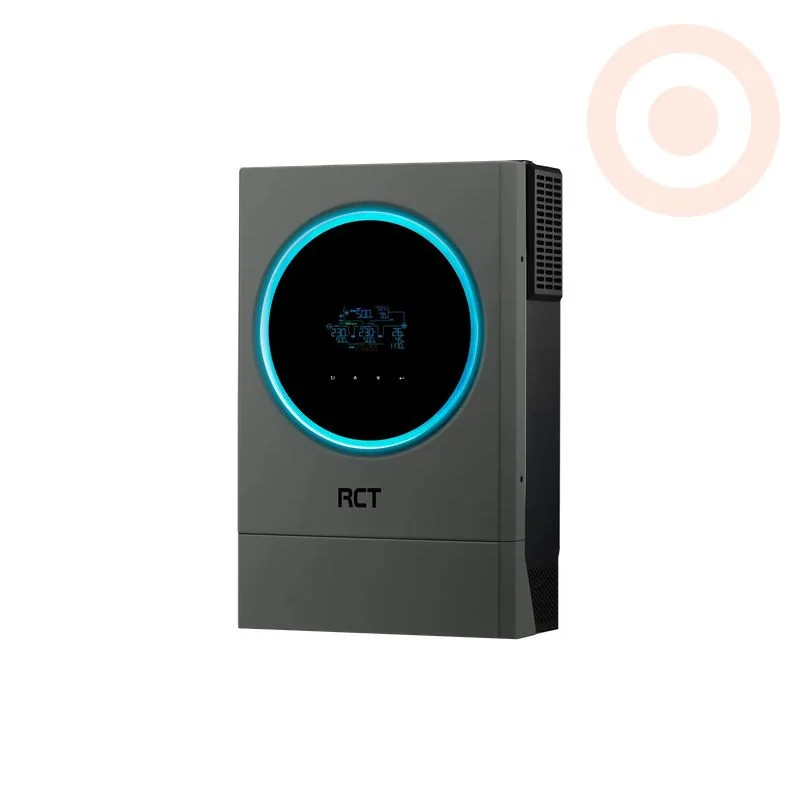

RCT AXPERT 5.6K MK4

Product pictures for illustrative purposes only.

  • RCT AXPERT 5.6K MK4

Delivery & Returns

  • Delivery: Nationwide courier, 2–4 working days (main centres).
  • Outlying Areas: Delivery may be up to 7 days.
  • Returns: 7-day inspection period from date of delivery.
  • Pricing: All prices include VAT. Delivery calculated at checkout.

RCT AXPERT 5.6K MK4

🚚 This product currently qualifies for free delivery
R6,370.00 including VAT
Sam

Get an automatic 2% discount when you order directly on this page and checkout by EFT!

Payment methods offered
EFT Mastercard Visa Mobicred Apple Pay Samsung Pay RCS Zapper

The RCT Axpert 5.6K MK4 is a high-performance 5.6kW pure sine wave solar inverter designed to provide reliable backup power and efficient solar energy management for residential and light commercial use.
  • Integrated Wi-Fi for seamless mobile monitoring via Android and iOS applications.
  • Advanced MPPT solar charger supporting up to 6000W PV input and high-voltage arrays.
  • Customizable status LED ring with RGB lights and a user-friendly 4.3-inch color LCD display.
  • Parallel capability for up to 9 units to easily scale system capacity.
17 Items
Quantity

IMPORTANT

The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.
The RCT Axpert 5.6K MK4 (MKS IV) represents the next generation of off-grid inverters, combining a powerful 5600W pure sine wave inverter with a versatile MPPT solar charge controller. Engineered for durability and ease of use, it features a transformerless design that ensures compact efficiency. Its standout features include a customizable RGB LED ring that provides immediate visual status updates and a built-in Wi-Fi module for remote data logging and system management. This inverter is ideal for users looking to achieve energy independence or secure a robust backup solution against power outages.

Technical Specifications
ModelRCT Axpert 5.6K MK4 (RCT-AXMK4-5.6K48V)
Rated Power5600VA / 5600W
Inverter WaveformPure Sine Wave
Input Voltage230 VAC
Selectable Voltage Range170-280 VAC (PC) / 90-280 VAC (Appliances)
Output Voltage Regulation230 VAC ± 5%
Peak Efficiency93%
Transfer Time10 ms (PC) / 20 ms (Appliances)
Battery Voltage48 VDC
Floating Charge Voltage54 VDC
Overcharge Protection66 VDC
Solar Charger TypeMPPT
Maximum PV Array Power6000 W
Max PV Array Open Circuit Voltage450 VDC
MPPT Range @ Operating Voltage120 VDC ~ 430 VDC
Max Solar Charge Current120 A
Max AC Charge Current120 A
Dimensions (D x W x H)140 x 295 x 468 mm
Net Weight12.0 kg
Communication InterfaceUSB / RS232 / RS485 / Wi-Fi / Dry-contact
RCT-AXPERT-5.6K-MK4

Logistical Details

MPN
RCT-AXMK4-5.6K48V
Weight
12.00 kg
Dimensions (W x H x D)
30 cm x 47 cm x 14 cm
