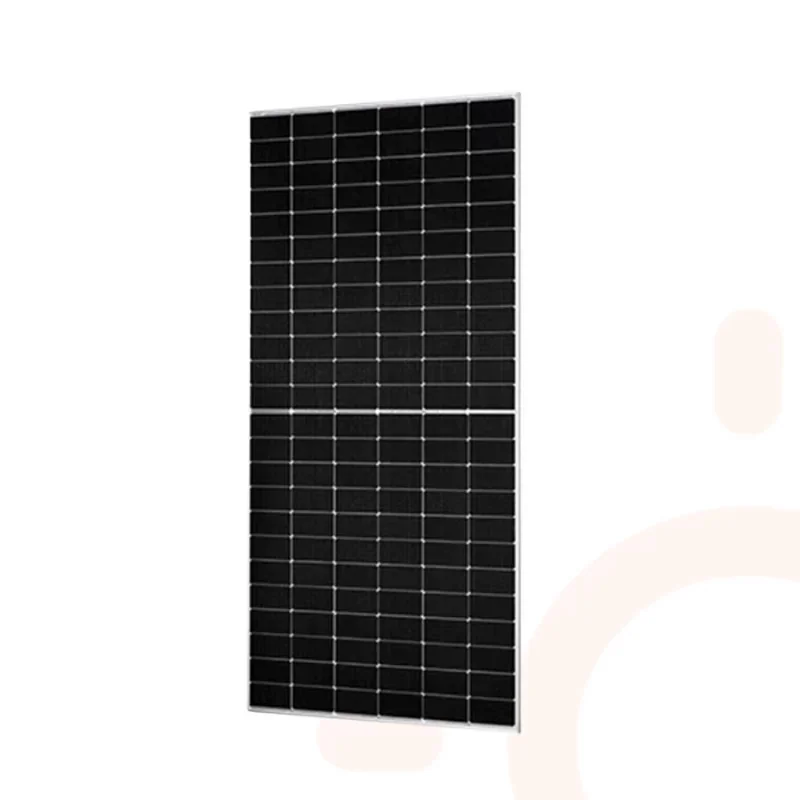

Jinko Tiger Neo 585Wp TOPCon N-Type Double Glass Bifacial Silver Frame
The Jinko Tiger Neo 585W N-Type Bifacial Dual Glass (JKM585N-72HL4-BDV) is part of Jinko’s flagship Tiger Neo range and is built for installations where maximum energy yield per square metre matters. This module uses advanced N-Type TOPCon cell technology, which reduces light-induced degradation and improves performance in both strong and low-light conditions. The dual-glass construction adds strength, fire safety, and resistance to South Africa’s harsh climate.
With a bifaciality coefficient of up to 80%, the panel can generate additional output from reflected light on the rear side, improving overall yield and reducing the levelised cost of energy, particularly on lighter-coloured surfaces. Mechanical durability is excellent, with certification for 5400 Pa front load and 2400 Pa rear load, making it suitable for coastal and high-wind regions.
The high module efficiency of 22.84% and tight power tolerance of 0 to +3% ensure consistent output. Jinko backs the panel with a 12-year product warranty and 30-year linear performance warranty, with only 1% degradation in the first year and 0.40% per year thereafter. This makes the Tiger Neo 590W a strong long-term investment for homes, businesses, and farms requiring robust, future-proof solar generation.
| Mechanical Characteristics | ||||||
|---|---|---|---|---|---|---|
| Cell Type | N-type Mono-crystalline | |||||
| No. of cells | 144 (72×2) | |||||
| Dimensions | 2278×1134×30 mm | |||||
| Weight | 31.0 kg | |||||
| Front/Back Glass | 2.0 mm, Anti-reflection Coating / 2.0 mm, Heat Strengthened Glass | |||||
| Frame | Anodized Aluminium Alloy | |||||
| Junction Box | IP68 Rated | |||||
| Output Cables | 4.0 mm² (+): 400 mm, (-): 200 mm or Customized Length | |||||
| Specifications (STC) | ||||||
| Model | 575W | 580W | 585W | 590W | 595W | 600W |
| Maximum Power Voltage - Vmp [V] | 43.73 | 43.88 | 44.02 | 44.17 | 44.31 | 44.45 |
| Maximum Power Current - Imp [A] | 13.15 | 13.22 | 13.29 | 13.36 | 13.43 | 13.50 |
| Open-circuit Voltage - Voc [V] | 52.30 | 52.50 | 52.70 | 52.90 | 53.10 | 53.30 |
| Short-circuit Current - Isc [A] | 13.89 | 13.95 | 14.01 | 14.07 | 14.13 | 14.19 |
| Module Efficiency STC [%] | 22.26 | 22.45 | 22.65 | 22.84 | 23.03 | 23.23 |
| Application Conditions | ||||||
| Operating Temperature | -40°C ~ +70°C | |||||
| Maximum System Voltage | 1500 VDC (IEC) | |||||
| Maximum Series Fuse Rating | 30 A | |||||
