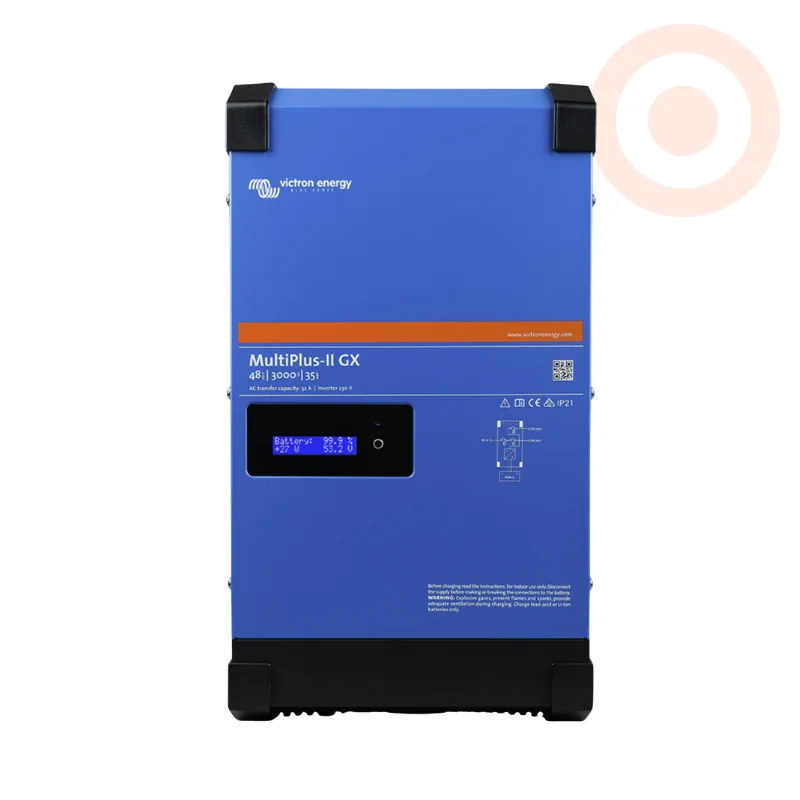

Victron MultiPlus-II 48/3000/35-32 GX Inverter

Product pictures for illustrative purposes only.

  • Victron MultiPlus-II 48/3000/35-32 GX Inverter

Delivery & Returns

  • Delivery: Nationwide courier, 2–4 working days (main centres).
  • Oulying Areas: Delivery may be up to 7 days.
  • Returns: 7-day inspection period from date of delivery.
  • Pricing: All prices include VAT. Delivery calculated at checkout.

Victron MultiPlus-II 48/3000/35-32 GX Inverter

R9,156.52 including VAT

Accepted payment methods including Visa, Mastercard, SnapScan, and EFT

Order must be placed on this page to qualify for 2% EFT discount.

The Victron MultiPlus-II 48/3000/35-32 GX is an advanced 48V 3000VA inverter/charger featuring an integrated GX control unit that provides complete, intelligent power ecosystem management for off-grid, backup, and energy storage systems.

  • Built-in GX Device: Eliminates the need for an external Venus device, offering seamless communication with managed lithium batteries, MPPTs, and the Victron Remote Management (VRM) portal.
  • Uninterrupted Power: Operates as a high-speed, zero-break UPS with a 32A transfer switch that takes over in under 20 milliseconds during grid failure.
  • PowerAssist & PowerControl: Dynamically cushions limited grid or generator supplies by utilizing battery power to prevent overloads during peak demand spikes.
Quantity
Out-of-Stock

IMPORTANT

The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.

Victron MultiPlus-II 48/3000/35-32 GX Inverter/Charger

The Victron MultiPlus-II 48/3000/35-32 GX combines a powerful pure sine wave inverter, an advanced adaptive battery charger, an ultra-fast AC transfer switch, and a comprehensive GX control unit in a single, pre-wired enclosure. This all-in-one design streamlines installation and provides complete ecosystem management for grid-parallel, off-grid, and commercial energy storage applications.

Key Features

  • Integrated GX Device: Includes a 2x16 character backlit display and multiple communication interfaces (BMS-Can, USB, Ethernet, VE.Direct, and Wi-Fi) for managing compatible CAN-bus lithium batteries, solar MPPT charge controllers, and grid meters directly.
  • PowerControl and PowerAssist: Prevents overload of limited AC sources (such as a generator or shore power). PowerControl automatically reduces battery charging when a load spike occurs. PowerAssist goes a step further, using battery power to supplement the grid or generator during peak demands.
  • Dual AC Outputs: The main AC output provides a zero-break UPS function, transferring to battery power in less than 20 milliseconds during grid failure. The secondary AC output only activates when an external AC source is present, preventing heavy loads (like water heaters) from draining the battery bank.
  • ESS (Energy Storage Systems) Ready: Optimized for self-consumption control. It works seamlessly with external AC current sensors or energy meters to minimize grid feed-in and maximize solar utilization.
  • Parallel and Three-Phase Operation: Scalable up to 6 units in parallel configuration for higher power output, or configurable for three-phase operation. (Note: Only one GX device is required per multi-unit system).

Technical Specifications

ParameterSpecification
ModelMultiPlus-II GX 48/3000/35-32
Nominal System Voltage48 VDC
PowerControl & PowerAssistYes
Transfer Switch / Max AC Input32 A
Auxiliary OutputYes (32 A)
INVERTER SPECIFICATIONS
DC Input Voltage Range38 – 66 VDC
AC Output Voltage & Frequency230 VAC ± 2% | 50 Hz ± 0.1% (Adjustable to 60 Hz)
Continuous Output Power at 25°C3000 VA / 2400 W
Continuous Output Power at 40°C / 65°C2200 W / 1700 W
Peak Power Output5500 W
Maximum Efficiency95%
Zero-Load Power (Normal / AES / Search)11 W / 7 W / 2 W
CHARGER SPECIFICATIONS
AC Input Voltage Range187 – 265 VAC
AC Input Frequency Range45 – 65 Hz
Max Battery Charge Current35 A
Charge Voltages (Absorption / Float / Storage)57.6 V / 55.2 V / 52.8 V
Battery Temperature SensorYes
GX & SYSTEM CONNECTIVITY
InterfacesBMS-Can, Wi-Fi, Ethernet, USB, VE.Direct
VE.Bus Communication PortFor parallel/three-phase setup, remote monitoring, and system integration
Programmable RelayYes (1x)
PHYSICAL ENCLOSURE SPECIFICATIONS
Enclosure Material & ColourSteel, Blue (RAL 5012)
Protection ClassIP22 (Indoor setup)
Battery ConnectionsM8 Bolts
AC ConnectionsScrew terminals 13 mm² (6 AWG)
Weight20 kg
Dimensions (H x W x D)506 mm x 275 mm x 147 mm
STANDARDS & CERTIFICATIONS
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
EMC (Emission / Immunity)EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1/2/3
UPS FunctionalityIEC 62040-1
3800700121
