600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type II SPD

Product pictures for illustrative purposes only.

  • 600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type II SPD

Delivery & Returns

  • Delivery: Nationwide courier, 2–4 working days (main centres).
  • Outlying Areas: Delivery may be up to 7 days.
  • Returns: 7-day inspection period from date of delivery.
  • Pricing: All prices include VAT. Delivery calculated at checkout.

600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type II SPD

R5,800.00 including VAT

Accepted payment methods including Visa, Mastercard, SnapScan, and EFT

Order must be placed on this page to qualify for 2% EFT discount.

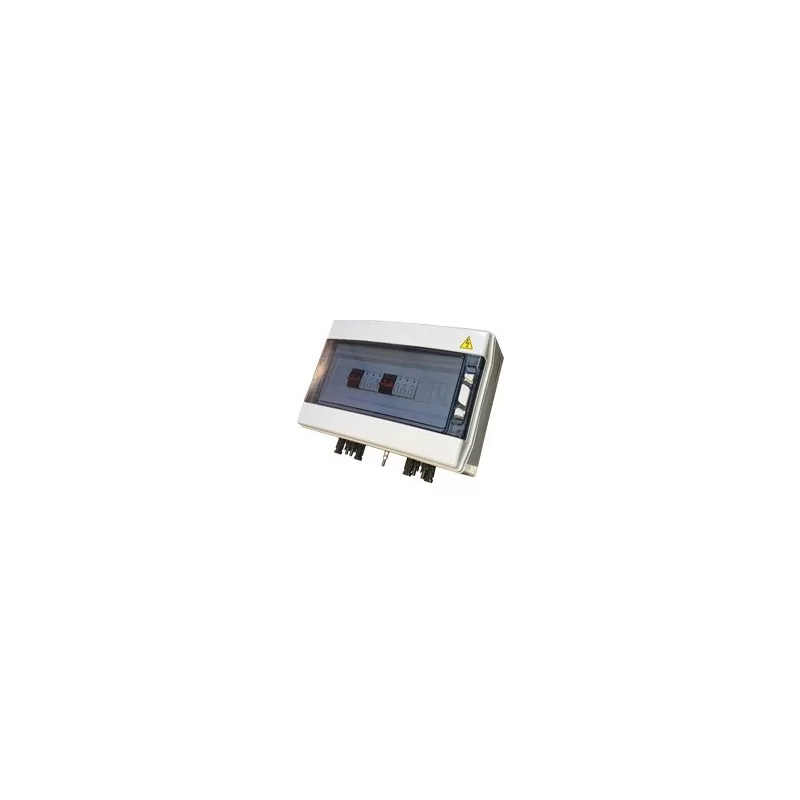

Outdoor-rated DC combiner box for connecting parallel PV strings into your MPPT. The box includes several features that reduces the amount of separate components you need to install.

13 Items
Quantity
In Stock

IMPORTANT

The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.

Inputs and Outputs

This unit combines 2 PV input pairs into 2 DC outputs. The inputs and outputs have MC4 connectors pre-fitted. There is also a gland output for earthing.

DC isolation: rated at 16A and 600V

DC surge protection

This unit has Dehn or Citel Type 2 DC surge arrestors included and is suitable for installation sites that experience less frequent lightning strikes.

DCB-NF-2I-600V-I16A-II-2O

Logistical Details

MPN
DCB-NF-2I-600V-I16A-II-2O
Weight
4.25 kg
Condition
New
