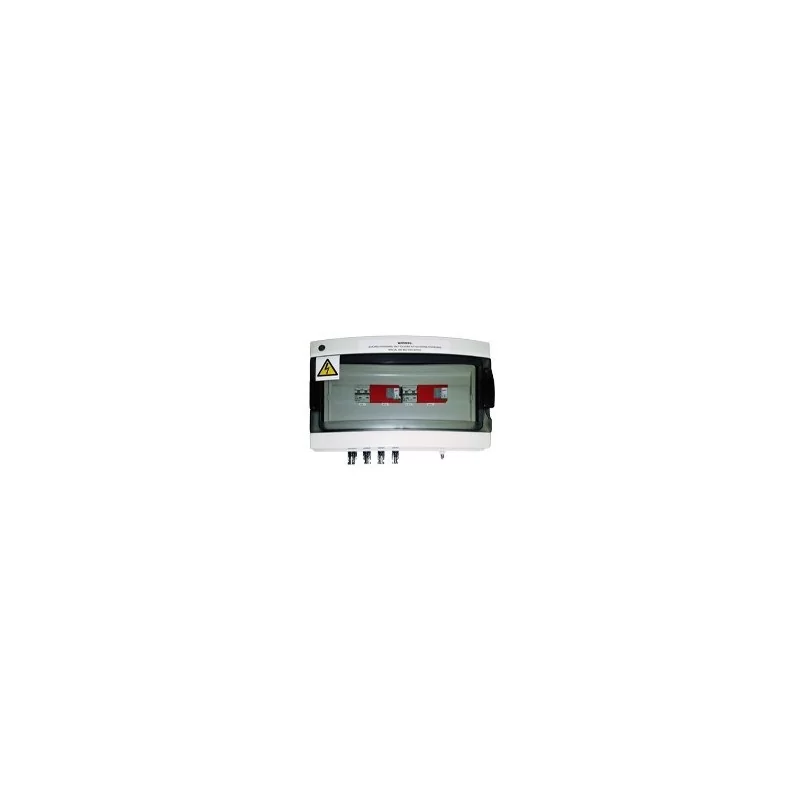

600V Combiner Box 4 Inputs 1 Outputs 63A Isolator Type I_II SPD
R6,270.00 including VAT
Delivery 2 to 4 working days, may be longer to outlying areas.
Order must be placed on this page to qualify for 2% EFT discount.
First time shopping with us? Here’s why you can trust Solar Shop.
Outdoor-rated DC combiner box for connecting parallel PV strings into your MPPT. The box includes several features that reduces the amount of separate components you need to install.
IMPORTANT
The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.Inputs and Outputs
This unit combines 4 PV input pairs into one DC output. The inputs have MC4 connectors pre-fitted and the main output is a gland. There is also a gland output for earthing.
DC isolation: rated at 63A and 600V
DC surge protection
This unit has Citel Type 1 & 2 DC surge arrestors included and is suitable for installation sites that experience frequent lightning strikes
DC fuses
Note, this DC Protection box does not include fuses. Ensure that you include fuses from FUSE-20A-10x38
DCB-FH-4I-600V-I63A-I_II-1O
6 Items
Specific References
- MPN
- DCB-FH-4I-600V-I63A-I_II-1O
