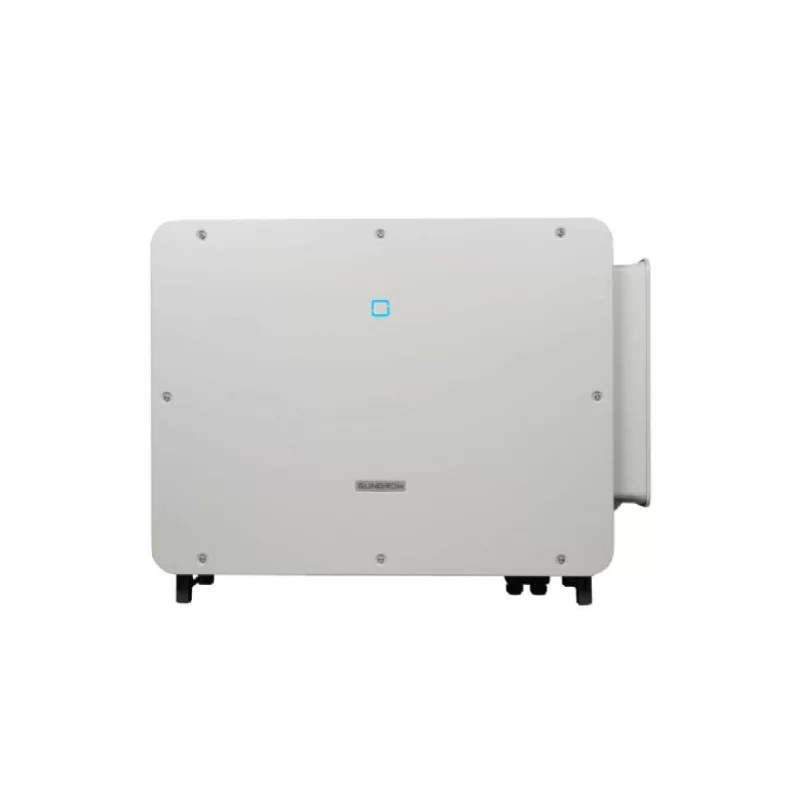

Sungrow 125kW PV Inverter 1000v 12x MPPT
R88,500.00 including VAT
Delivery 2 to 4 working days, may be longer to outlying areas.
Order must be placed on this page to qualify for 2% EFT discount.
First time shopping with us? Here’s why you can trust Solar Shop.
Sungrow 125kW PV Inverter 1000v 12x MPPT
- Rating: 125,000W
- Phases: 3
THIS INVERTER COMES WITH A 5YR STANDARD WARRANTY
IMPORTANT
The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.Description
- Sungrow 125kW PV Inverter – SG125CX-P2
- Model SG125CX-P2
- Multi-MPPT String Inverter for 1000Vdc System.
- High Yield – MPPT Max Efficiency of 98.5%
- Lower Investment.
- Smart O&M
- Proven Safety.
- Display: LED, Bluetooth+App
- Communication: RS485/Optional (WLAN, Ethernet)
- Max PV Input Voltage: 1100V
- Min PV Input Voltage: 180V
- Start-up Input Voltage: 200V
- Rated PV Input Voltage: 600V
- MPP Voltage Range: 180-1000V
- No. of Independent MPPT Inputs: 12
- No of PV Strings per MPPT: 2
- Max AC Output Current: 181.1A
- AC Voltage Range: 320-480V
- Rated Grid Frequency: 50/60Hz
- Grid Frequency Range: 45-55Hz/55-65Hz
- Max Efficiency: 98.5%
- European Efficiency: 98.3%
- Topology: Transformerless
- Smart Forced Air Cooling.
- Ingress Protection Rating: IP66
- Operating Ambient Temperature Range: -30 to 60°C
- Max Operating Altitude: 4000m (>3000m derating)
- Weight: 87Kg
- Dimensions (W x H x D): 1020 x 795 x 360 mm
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images
Distributor Warranty Details
SG-125CX-P2
