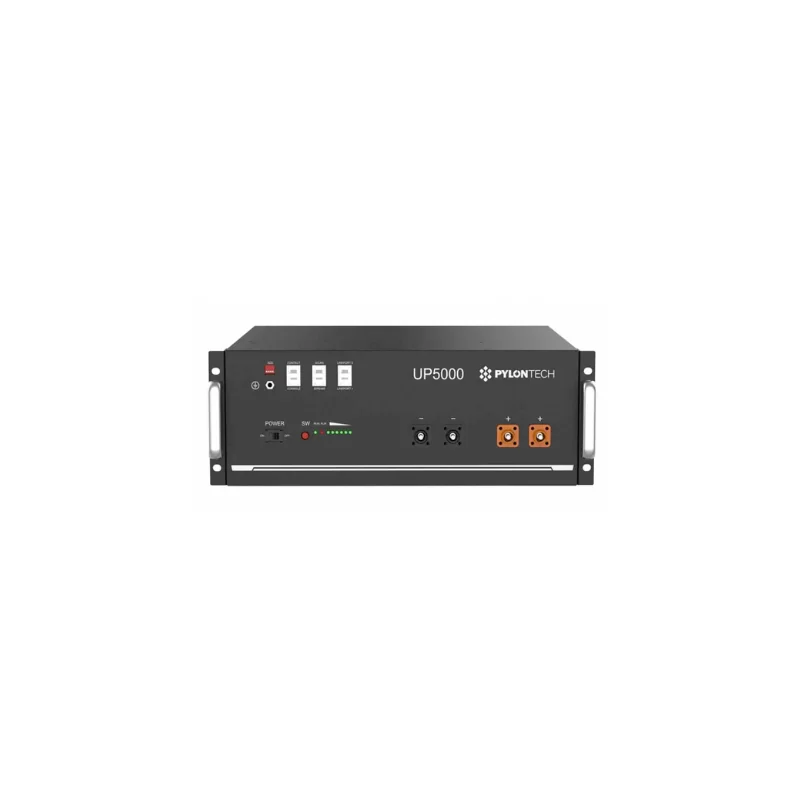

Pylontech UP5000 4.8kWh Li-Ion Solar Battery 48V
R17,840.00 including VAT
Delivery 2 to 4 working days, may be longer to outlying areas.
Order must be placed on this page to qualify for 2% EFT discount.
First time shopping with us? Here’s why you can trust Solar Shop.
Pylontech UP5000 4.8kWh Li-Ion Solar Battery 48V
IMPORTANT
The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.A new battery in the UP series from Pylontech. The UP5000 is a 48V battery with incredible features to provide a competitive edge in the market.
Product Features
- Modular design for ease of expansion
- Higher usable capacity resulting in less battery modules installed
- Deliver up to 4.8kW* with single module (4.8 kWh) - * please note this value is inverter/charger dependant, typically the maximum sustained value is 2.4kW per battery
- Please see here for more info: https://www.solar-shop.co.za/content/24-pylontech-battery-sizing-considerations
- Usable capacity 4 560Wh
- Parallel Capability of up to 16 units
- Allows for large installation of up to 72.96kWh with no LV Hub
- Intelligent BMS protecting battery cells
- 95% DoD with more usable capacity
- RS485 and CAN compatible
- Dimensions: 442*420*161 mm
Important
MAX DISCHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS The maximum allowed voltage is 53.5V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter. Please ensure that you have the correct BMS cable for the correct inverter.You can now register the Pylon UP5000 for an additional 3 years of manufacturer warranty for free. Go to http://en.pylontech.com.cn/service/support and complete the information on the 'sign up battery' page.
Distributor Warranty Details
PYLON-UP5000
9 Items
Specific References
- MPN
- PYLON-UP5000
New
Questions
Question
Good Day, will this battery work with this Inverter? MECER 5kva HYBRID INVERTER 2400PWM CONTROLLER 48v Rated Power: 5000VA/5000W Voltage: 230 VAC Surge Power: 10000VA Efficiency: 93% Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances) Waveform: Pure sine wave Battery Voltage: 48 VDC Overcharge Protection: 63 VDC Maximum Solar Charge Current: 50A Maximum AC Charge Current: 60A Maximum PV Array Power: 2400 W Maximum Charging Current: 110A
Answer
Hi Terry, yes it will work on manual settings only. Please note, a single Pylontech UP5000 can only produce a power output of 2.5kW.
See this discussion here for more info: https://www.solar-shop.co.za/content/24-pylontech-battery-sizing-considerations
You would be better off using a Hubble in this situation, which is a 1C battery.
Terry on 23/02/2023 13:33:00
Question
Hi All, for the US5000, what is the max continuous discharge current?
Answer
Hi Mark. Like all the Pylontech range it is a 0.5C battery, so max continuous power discharge is 2.5kW (50A discharge current).
mark smith on 11/09/2022 10:41:00
Question
Hi Can I use 2x of these batteries parallel with a growatt spf 5000 es inverter?
Answer
Hi Riaan, yes you can
Riaan on 28/04/2022 10:34:00
Question
Can you install the Pylontech UP5000 4.8kWh Li-Ion Solar Battery 48V battery only horizontal, as displayed in the pic? Is it compatible with a Sunsynk 5kw 1P hybrid PV inverter 48v? Gerhard
Answer
Hi Gerhard, yes you can hang the unit from a wall bracket such as this one here: https://www.solar-shop.co.za/li-ion-battery-cabinets/482-pylontech-vertical-wall-mount-bracket.html
It is compatible with the Sunsynk inverters, yes.
Gerhard on 02/04/2022 11:29:00
Question
Hi, Is this battery compatible with growatt SPF 5000 ES inverter? If not what battery is compatible?
Answer
Hi Riaan, yes both this one and the Hubble (https://www.solar-shop.co.za/hubble/527-hubble-55kw-lithium-am-2.html) can be used with the ES series.
Riaan on 24/02/2022 10:44:00
Question
Does the UP5000C have the battery brackets similar to ones theUS2000 andUS3000 have? To stack them on the floor
Answer
Hi Hoohlo, yes they do, but Pylontech haven't bought them in before. We are expecting to receive some at the end of the month.
You can check them here: https://www.solar-shop.co.za/accessories/680-pylontech-up5000-brackets-pair.html
hoohlo on 11/01/2022 17:32:00
Question
Are the battery terminals on the front or the rear of the battery?
Answer
Hi Timothy, they're on the front of the battery.
Timothy on 06/12/2021 14:52:00
Question
Is this a 15 cell or 16 cell Battery - 48V? What is is the highest kWh you have in 15 cell - 48V?
Answer
They're 15 cell batteries. This is the biggest one.
Francois on 03/06/2021 12:19:00
Question
Can you connect it to a 3000 and 2000 pylontech? Does it come with the short cables and can cable? Do you have stock?
Answer
Hi Tokkie, no the manufacturer does not recommend mixing this battery with the US series.
The battery comes with parallel link cables for connecting additional batteries. The CAN cable to the inverter needs to be supplied from the inverter side, as these cables vary in their pinouts according to the inverter.
Tokkie Bodenstein on 11/05/2021 12:08:00
Question
Is this a 1C battery ? Is it compatible with a sunsynk inverter ?
Answer
Hi Ben, it's a 0.5C battery and is compatible with Sunsynk
Ben on 17/04/2021 13:22:00
Question
Hi is the UP5000 compatible with the US300C? dont the UP5000 have battery terminal in the front? are these terminals on the back of the battery?
Answer
Hi Werner. We haven't got our hands on any yet, but we have been told by the distributor that they are not compatible with the US3000C.
werner on 03/03/2021 15:38:00
