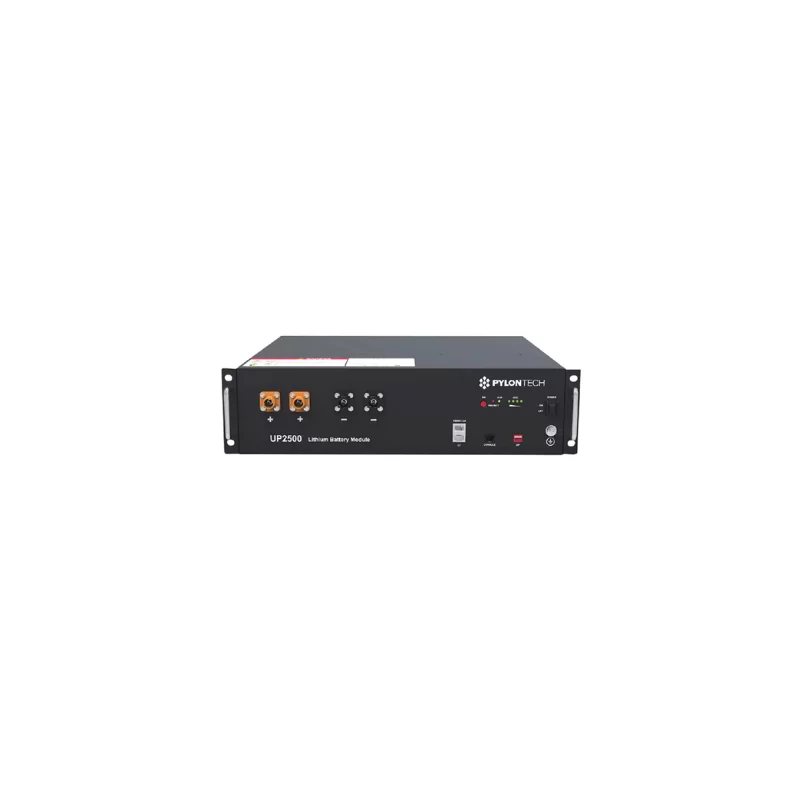

Pylontech UP2500 2.84kWh Li-Ion Solar Battery 24V
R11,700.00 including VAT
Order must be placed on this page to qualify for 2% EFT discount.
First time shopping with us? Here’s why you can trust Solar Shop.
Pylontech UP2500 2.84kWh Li-Ion Solar Battery 24V with CAN connection
IMPORTANT
The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.Pylon UP2500 CAN - Voltage 24V
Nominal Wh 2840
6000 Cycles at 80%
The solar battery is ONLY Compatible with 24V Voltronic inverters
Comes with CAN communication.
RS485 communication supports Voltronic 24V inverter
CAN communication supports Victron 24V inverter
Supports maximum 20 pcs in parallel connection
Key battery parameters setting:
- Charging cut off voltage point: 28.4VDC
- Discharging cut off voltage point: 24.8VDC
- Recommend charge/discharge current = 55A * N (N=Number of parallel batteries)
- Other settings are basically same as the 48V system
Important
The maximum allowed voltage is 28.8V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter.5-year manufacturers warranty.
You can now register the Pylon UP2500 for an additional 2 years of manufacturer warranty for free. Go to http://en.pylontech.com.cn/service/support and complete the information on the 'sign up battery' page.
Distributor Warranty Details
N-S-PYLON-UP2500-CAN
Specific References
- MPN
- N-S-PYLON-UP2500-CAN
New
Questions
Question
Good Morning
I intend to use the US2000 series battery in conjunction with my Victron Quatro 24v inverter.
Do I need to use a GX devise , or can I configure the battery and inverter manually.
Answer
Hi Paul. Yes, you can use this battery without a GX device.
You would need to set the charger parameters on the Quattro to those required by Pylontech for this battery.
In order to do this, you would need the Victron Connect software and some kind of interface between the Quattro and your laptop or phone.
This could be a VE.Bus to USB cable or a Bluetooth Smart dongle
P.S. We are assuming your mention of the US2000C in the text is a typo. The US2000C is a 48V battery.
Also, please note that the UP2500 is a 0.5C battery. More on this HERE
Paul on 05/08/2024 07:50:48
Question
hi. i have a 3kw mecer inverter (SOL-I-AX-3M-24). will this battery work with the inverter? do i need to still buy the cable pack?
Answer
Hi Bradley, yes it will. You will need the cable pack, yes.
Also, bear in mind the batteries C rating in terms of the power output you require from the inverter:
https://www.solar-shop.co.za/content/24-pylontech-battery-sizing-considerations
Bradley on 22/02/2023 07:37:00
Question
hello. how many hours of backup time if my total load is 500watt. with Pylontech UP2500 2.84kWh Li-Ion Solar Battery 24V and 3kva 24v axpert inverter thanks
Answer
Hi Victor. Around 5 hours. 500W x 5 hours = 2.5 kWh. Battery capacity is 2.84 kWh.
victor on 10/02/2023 23:06:00
Question
Hi, can this battery function with a synapse 3kva, i would do the settings manually and not use COM, is that possible?
Answer
Hi Zama, yes you can use this battery with that inverter using manual settings.
Zama on 07/09/2022 23:49:00
Question
I have an Axpert 2kVA with 24V input. Currently with 2 x 12V 105ah Deep cycle lead acid in series. Does this inverter have a charge program for LiIon ? Will it work with this Pylontech battery.
Answer
Hi Barry, yes you could use a Pylontech UP2500 with this inverter. It would operate manually however. No BMS communciations.
Barry on 26/05/2022 09:44:00
Question
Can this battery work with Kool energy VM 2.2kw inverter?.
Answer
Hi Godfrey, no it cannot.
Godfrey on 23/04/2022 04:13:00
Question
May I use this battery on rct Vm111 axpert voltronic
Answer
Hi Maxwell, no this battery is a 24V battery. You will need to use a 48V battery with this inverter, such as the US2000C:
https://www.solar-shop.co.za/pylontech/614-pylontech-usb2000-plus-lithium-ion-battery.html
Maxwel Munetsi on 13/02/2022 08:30:00
Question
What is the C-Rating of this battery (Pylontech UP2500 2.84kWh Li-Ion Solar Battery 24V) I don't find it in the data sheet
Answer
Hi Steve, it is 0.5C. For more info:
https://www.solar-shop.co.za/content/24-pylontech-battery-sizing-considerations
and
https://www.solar-shop.co.za/content/25-li-ion-storage-vs-c-rating
Steve on 27/01/2022 15:52:00
Question
Can the battery's mounted in vertical position to save space or must it be mounted horizontal
Answer
Hi Kobus, you can mount it vertically if required.
Kobus on 03/06/2021 09:15:00
Question
Good Day I have a Growatt 24v off grid inverter with 8 x 12v 105 ah battery's connected in series/parallel.How many of these batteries do I need for the same capacity
Answer
Hi, assuming the recommended DOD on the lead acid batteries of 50% you will need 2 batteries to equal the storage capacity. However, since the Pylonss are 0.5C batteries, 2 batteries will give you a max power output under battery power alone of 2.8kW
xander on 23/05/2021 18:30:00
Question
Which 24 V inverters does this battery have BMS integration with, I have the Synapse 3 KVa and want to know if there is compatibility
Answer
Hi Irshad, it does not have BMS integration with the Synapse. It will work with the Kodak VMIII 3kW
Irshad on 11/03/2021 13:40:00
Question
Hey Say I buy one of these and later want to upgrade to a 48v system would i be ale to use 2 of them to go up to 48v or would there be some issue with the bms
Answer
Hi Riaan, no the Pylontechs can only be paralleled, so you're stuck with the same voltage batteries going forward.
Riaan on 16/07/2020 17:55:00
