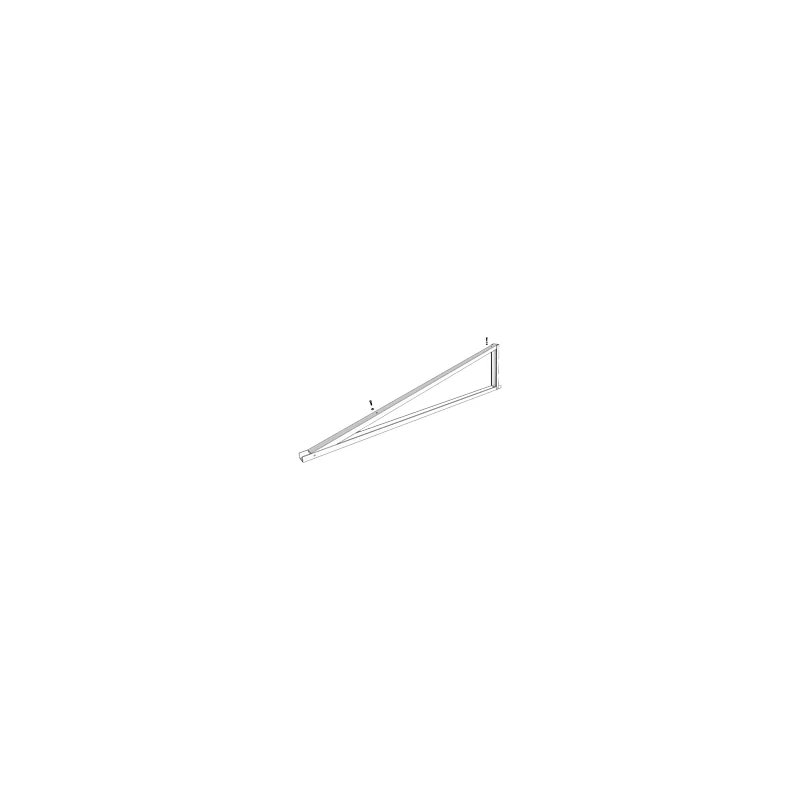

KD Solar adjustable V-frame bracket for landscape mounting
R408.00 including VAT
Delivery 2 to 4 working days, may be longer to outlying areas.
Order must be placed on this page to qualify for 2% EFT discount.
First time shopping with us? Here’s why you can trust Solar Shop.
This KD Solar V-Frame is for mounting panels in landscape orientation only. Further, this solution only caters for panels with a width of 1134mm.
Please be aware that these items do not constitute the entire mounting solution by themselves. You will need other items to complete an installation, depending on your exact requirements.
If you are unsure as to what else is required, please email us (support@solar-shop.co.za) and we will assist you in finalising the solution.
IMPORTANT
The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.This adjustable bracket is mainly used for flat or low-angled roofs - the user-adjustable angles allow a more efficient PV array in terms of harvesting the sun's energy. In addition, the adjustable V-frame bracket can be used with any flat metal roof anchor (for corrugated, cliplock or IBR roofs) whenever an additional elevated angle is required, in such cases the KDS-A-FRM-BOLT is required to fasten the V-frame on the roof anchor.
The recommended distance between each successive V-frame on a PV array is 1400mm, however, the maximum length must not exceed 1600mm.
Adjustable V-frame properties:
- 13-25 degrees adjustable frame
- M12x16mm bolt
- M8x20x3 washer &
- M8 nyloc nut
This KD Solar A-Frame is for panels with a width of 1134mm.
