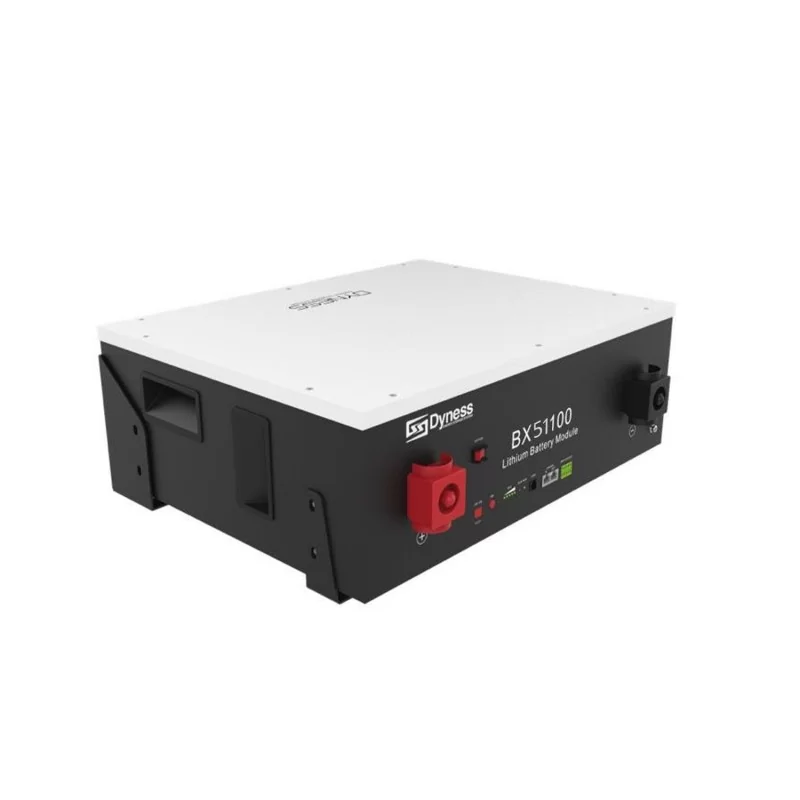

Dyness Battery Lithium Ion 5.12Kwh 51.2V 100Ah (1C)

Description

The 5.12kWh Lithium-ion Battery BX51100 LFP Module pack comes with a battery management system that protects against overcharging, over-discharging and short circuits. The BX51100 5.12kwh lithium battery provides 48V of continuous output power for superior performance and reliability.

At a fraction of the weight and volume of other battery types, it’s ideal for projects that call for installation space and easy transportability. The Dyness is a 5.12 kWh lithium battery suitable for use with renewable energy sources, such as solar panels. The Dyness 5.12kwh lithium battery BX51100 LFP Module is a 5.12 kWh lithium battery that stores electricity generated by renewable energy sources, and stores it for later use when required.

General Data
• Model: A51100
• Cell Technology: Li-ion(LFP)
• Battery Module Capacity: 5.12KWH
• Battery Module Voltage: 51.2VDC
• Battery Module Capacity: 100AH
• Battery Cell Capacity: 320WH
• Battery Cell Voltage: 3.2VDC
• Battery Cell Capacity: 100AH
• Battery Module Cell Quantity in Series: 16 PCS
• Battery Module Charge Voltage: 56.5VDC
• Battery Parallel Capacity: 40 Units
• Communication: CANBUS / RS485
• Mounting: Wall Mount & Rack Mount

Environment Limit
• Charge Condition: 0°C to 55°C
• Discharge Condition: -20°C to 55°C
• Relative Humidity: 5% to 85% (Non Condensing)
• Enclosure Protection: IP20

Distributor Warranty Details

 Register your battery for warranty here: http://www.dyness.net/sign

Dyness Warranty (PDF)
