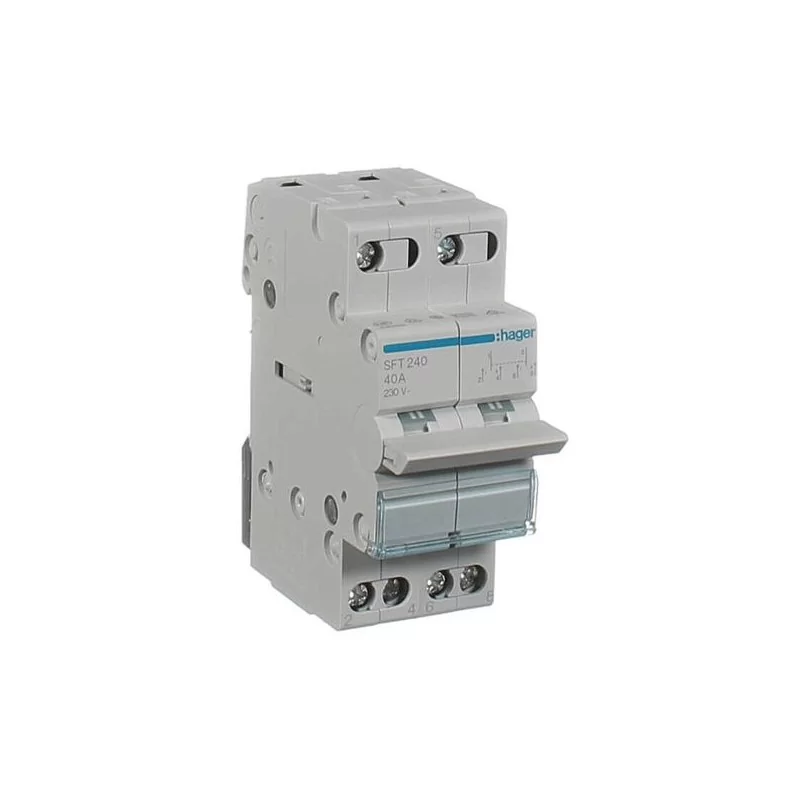

Hager Change Over 40A 2Pole Din 2Mod SFT240

Product pictures for illustrative purposes only.

  • Hager Change Over 40A 2Pole Din 2Mod SFT240

Hager Change Over 40A 2Pole Din 2Mod SFT240

R410.00 including VAT

Accepted payment methods including Visa, Mastercard, SnapScan, and EFT

Order must be placed on this page to qualify for 2% EFT discount.

Hager Change Over 40A 2 Pole Din 2 Module

Quantity

Delivery & Returns

  • Delivery: Nationwide courier, 2–4 working days (main centres).
  • Oulying Areas: Delivery may be up to 7 days.
  • Returns: 7-day inspection period from date of delivery.
  • Pricing: All prices include VAT. Delivery calculated at checkout.
First time shopping with us? Here’s why you can trust Solar Shop. In stock
7568 Items

IMPORTANT

The products we sell must be installed by a qualified electrician/technician and must adhere to local wiring regulations and standards. We are not liable for any damages or warranty rejections as a result of incorrectly installed products or systems.

Technical properties

Architecture
  • Type of order
    Changeover switch
  • Number of poles
    2 P
  • Type of pole
    2 P
Configuration
  • Number of modules
    2
Main electrical features
  • Rated operational voltage Ue
    230 V
  • Frequency
    50/60 Hz
Voltage
  • Rated insulation voltage
    440 V
  • Type of voltage input 1
    AC
  • Rated impulse withstand voltage
    4000 V
Electric current
  • Rated operational current in AC21category B
    40 A
  • Acceptable current rating with AC22 category A
    40 A
  • Rated current
    40 A
  • Rated short-time withstand current 1s
    0.6 kA
  • Thermal rated current outside of housings
    40 A
  • Rated operational current in AC21 category A
    40 A
  • Acceptable current rating with AC22 category B
    40 A
Dimensions
  • Depth of installed product
    70 mm
  • Height of installed product
    83 mm
  • Width of installed product
    35 mm
Frequency
  • Frequency
    50 to 60 Hz
Power
  • Total power loss under IN
    4.2 W
  • Power loss per pole at In
    2.1 W
Endurance
  • Electrical durability at nominal load in AC21in operating cycles
    25000
  • Electrical durability at nominal load in AC22 in operating cycles
    25000
  • Number of mechanical operations
    200000
Installation, mounting
  • Tightening torque
    1,8Nm
Connection
  • Connection cross-sect. flexible conductor
    1,5 / 10mm²
  • Connection cross-sect. rigid cable
    1,5 / 16mm²
  • Cage clamp position
    off set
  • Type of connection
    with screw
Equipment
  • Quantity of NC contacts
    0
  • Quantity of NO contacts
    0
  • Quantity of INV contacts
    2
Standards
  • Standard text
    IEC 60947-3
  • European directive WEEE
    concerned
Safety
  • Protection index IP
    IP20
Use conditions
  • Operating temperature
    -20…50 °C
  • Degree of pollution according to IEC 60664 / IEC 60947-2
    2
  • Altitude
    2000 m
  • Storage/transport temperature
    -40…80 °C
